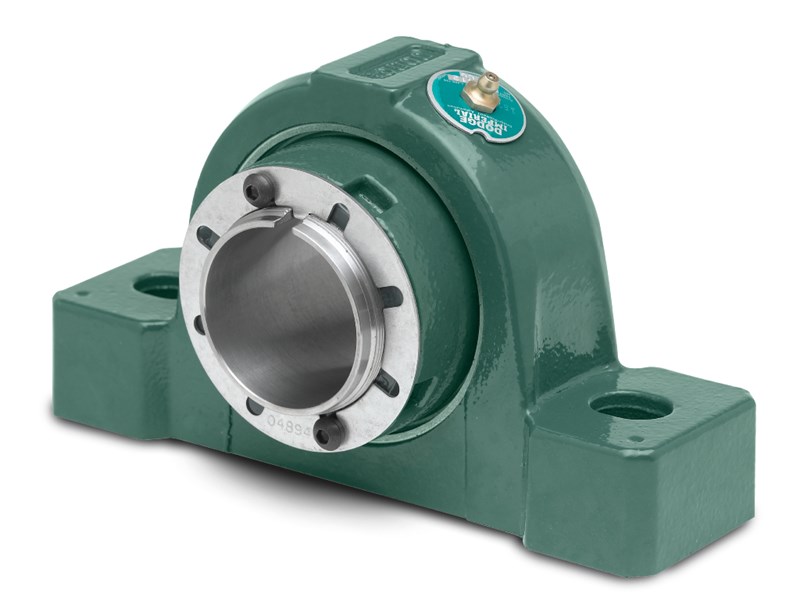

Dodge® 071676 DOD071676
Dodge® 071676 315 Heavy Duty Imperial Pillow Block Roller Bearing Unit, 3-15/16 in Dia Bore, 10.04 to 12.6 in L Bolt Center-to-Center, 4-1/4 in Base to Bore Centerline, 14-1/4 in OAL x 8.37 in OAH, Alternate Part Number: SP2B-IP-315R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD071676
- Alt Part Number: SP2B-IP-315R
- MPN: 071676
- UPC: 782476365837
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® imperial spherical roller bearings use a patented adapter mounting system for quick installation and removal. The imperial roller bearing is available in flange, pillow block, or insert configurations, with interchangeable dimensions and superior sealing options.
Dodge® Pillow Block Roller Bearing Unit, Heavy Duty Imperial, Series: 315, 3-15/16 in Bore, 10.04 to 12.6 in Bolt Center-to-Center Length, 4-1/4 in Base to Bore Centerline, 14-1/4 in Overall Length, 4.7 in Overall Width, 8.37 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3.89 in Base Width, Tapered Adapter Sleeve Locking Device, Trident™ Seal, Non-Expansion (Fixed), 83000 lb Dynamic/104000 lb Static Load, 1530 rpm Maximum, Steel, Powder Coated
| Base Width | : | 3.89 in |
| Base to Bore Centerline | : | 4-1/4 in |
| Bolt Center-to-Center Length | : | 10.04 to 12.6 in |
| Bore Diameter | : | 3-15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Powder Coated |
| Load Capacity | : | 83000 lb Dynamic/104000 lb Static |
| Locking Device | : | Tapered Adapter Sleeve |
| Material | : | Steel |
| Maximum Speed | : | 1530 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 8.37 in |
| Overall Length | : | 14-1/4 in |
| Overall Width | : | 4.7 in |
| Seal Type | : | Trident™ |
| Series | : | 315 |
| Type | : | Heavy Duty Imperial |
- Misalignment capability
- Expansion capability
- Superior sealing
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
- Corrosion resistant flinger blocks contaminants
- Steel cage with guide rings offers precision roller guidance
Line Drawing
