Dodge® 071655 DOD071655

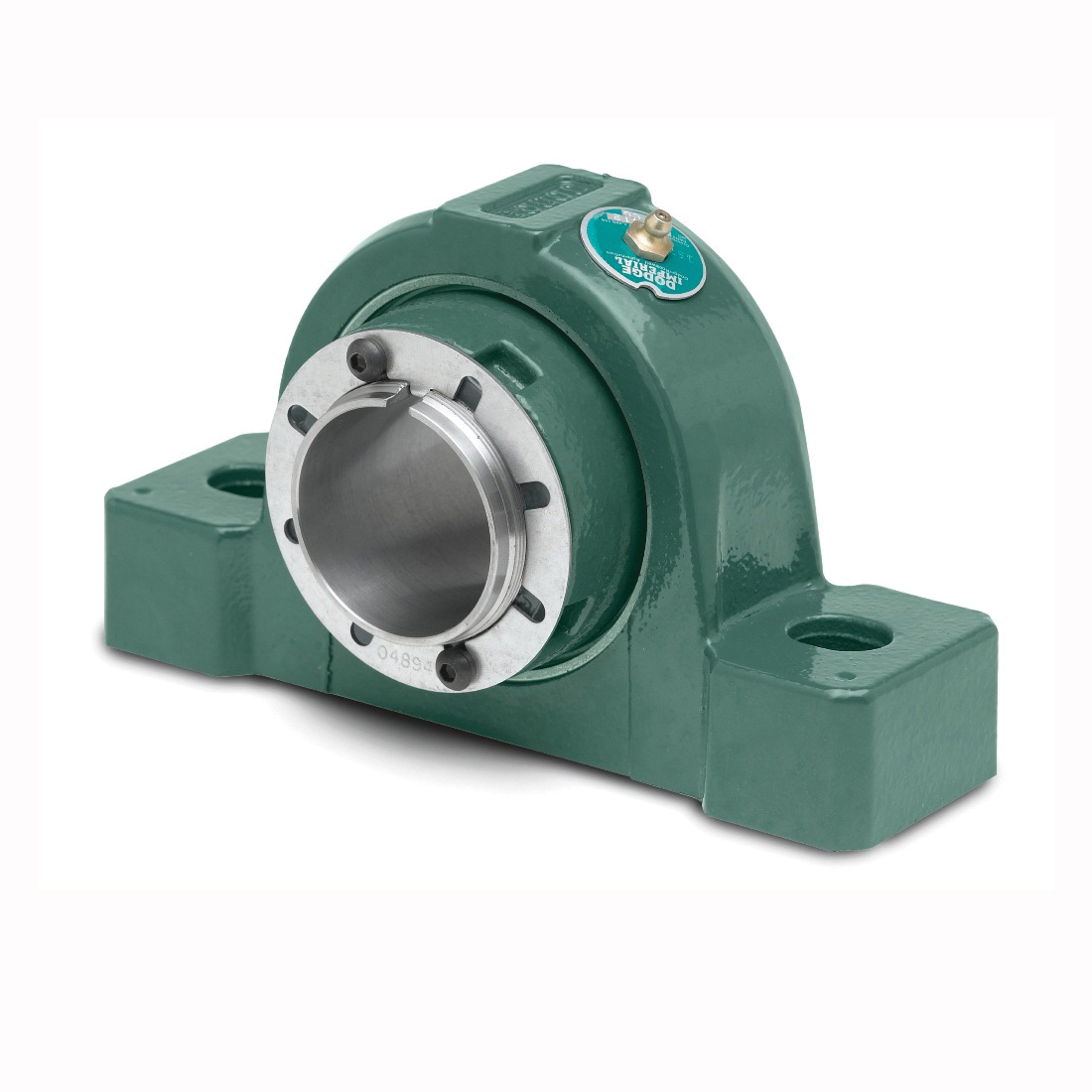

Dodge® 071655 107 Heavy Duty Imperial Pillow Block Roller Bearing Unit, 1-1/2 in Dia Bore, 4.69 to 6 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 6.88 in OAL x 3.88 in OAH, Alternate Part Number: SP2B-IP-108R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD071655
- MPN: 071655
- UPC: 782476365677
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® imperial spherical roller bearings use a patented adapter mounting system for quick installation and removal. The imperial roller bearing is available in flange, pillow block, or insert configurations, with interchangeable dimensions and superior sealing options.
Dodge® Pillow Block Roller Bearing Unit, Heavy Duty Imperial, Series: 107, 1-1/2 in Bore, 4.69 to 6 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6.88 in Overall Length, 2.63 in Overall Width, 3.88 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/4 in Base Width, Tapered Adapter Sleeve Locking Device, Triple Lip Seal, Non-Expansion (Fixed), 20800 lb Dynamic/21000 lb Static Load, 3975 rpm Maximum, Steel, Powder Coated
| Base Width | : | 2-1/4 in |
| Base to Bore Centerline | : | 1-7/8 in |
| Bolt Center-to-Center Length | : | 4.69 to 6 in |
| Bore Diameter | : | 1-1/2 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Powder Coated |
| Load Capacity | : | 20800 lb Dynamic/21000 lb Static |
| Locking Device | : | Tapered Adapter Sleeve |
| Material | : | Steel |
| Maximum Speed | : | 3975 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 3.88 in |
| Overall Length | : | 6.88 in |
| Overall Width | : | 2.63 in |
| Seal Type | : | Triple Lip |
| Series | : | 107 |
| Type | : | Heavy Duty Imperial |
- Misalignment capability
- Expansion capability
- Superior sealing
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
- Corrosion resistant flinger blocks contaminants
- Steel cage with guide rings offers precision roller guidance
Line Drawing
