Dodge® 071459 DOD071459

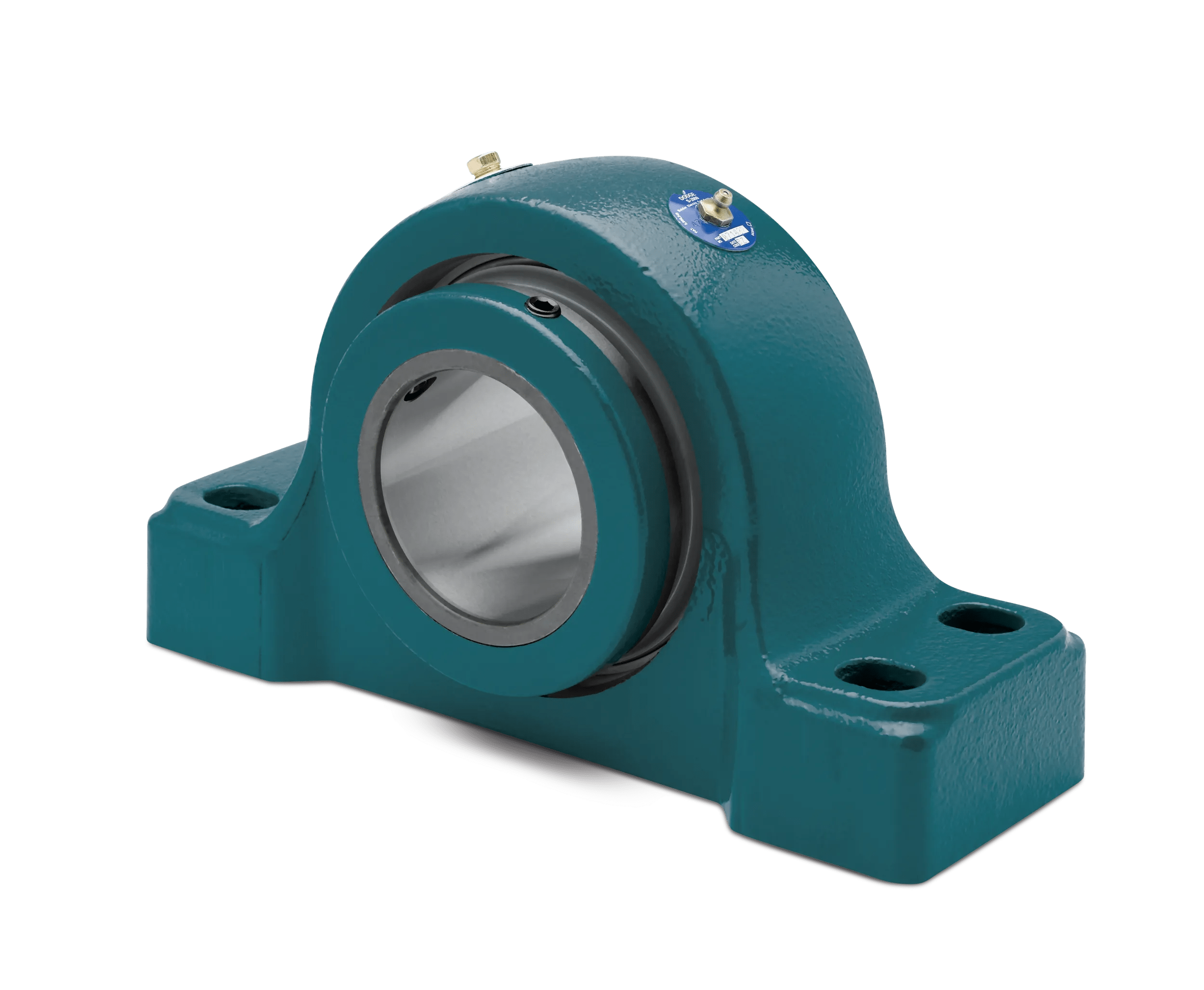

Dodge® 071459 215 Type S2000 Pillow Block Roller Bearing Unit, 2-15/16 in Dia Bore, 9.18 to 9.82 in L Bolt Center-to-Center, 3.13 in Base to Bore Centerline, 12 in OAL x 6.33 in OAH, Alternate Part Number: EP4B-S2-215LE
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD071459
- Alt Part Number: EP4B-S2-215LE
- MPN: 071459
- UPC: 782476186883
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Unit-housed double row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
Dodge® Pillow Block Roller Bearing Unit, Type S2000, Series: 215, 2-15/16 in Bore, 9.18 to 9.82 in Bolt Center-to-Center Length, 3.13 in Base to Bore Centerline, 12 in Overall Length, 3.59 in Overall Width, 6.33 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4 in Base Width, 65 deg Set Screw Locking Device, Stamping Seal, Expansion Expansion, 41500 lb Dynamic/53000 lb Static Load, 2040 rpm Maximum, Cast Iron, Powder Coated
| Base Width | : | 4 in |
| Base to Bore Centerline | : | 3.13 in |
| Bolt Center-to-Center Length | : | 9.18 to 9.82 in |
| Bore Diameter | : | 2-15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 41500 lb Dynamic/53000 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 2040 rpm |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 6.33 in |
| Overall Length | : | 12 in |
| Overall Width | : | 3.59 in |
| Seal Type | : | Stamping |
| Series | : | 215 |
| Type | : | Type S2000 |
- Misalignment capability
- Expansion capability
- Superior sealing
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- Seal land maintains full seal contact when misaligned
- Corrosion resistant flinger blocks contaminants
