Dodge® 071394 DOD071394
  1. pin-int

Dodge® 071394 DOD071394

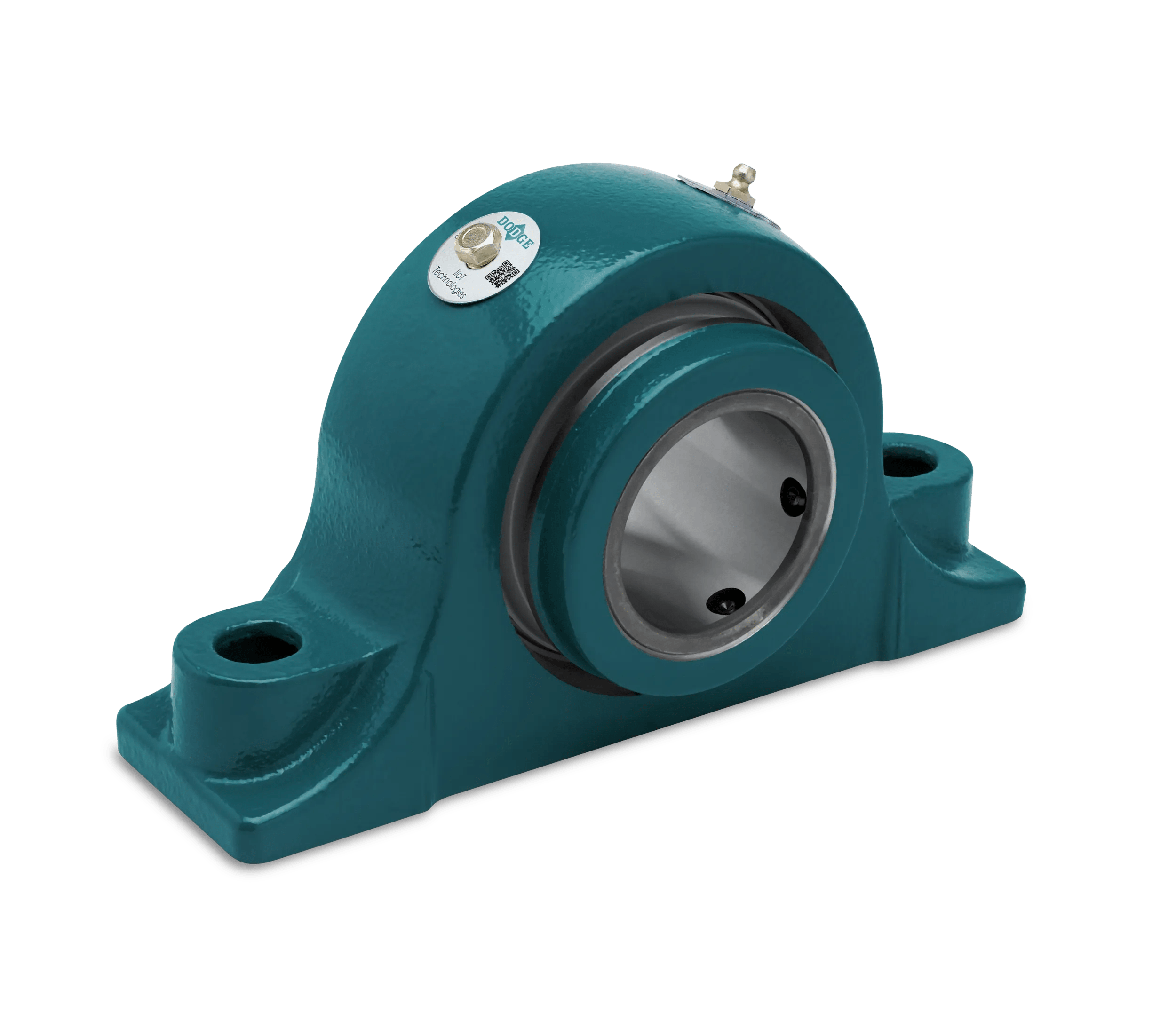

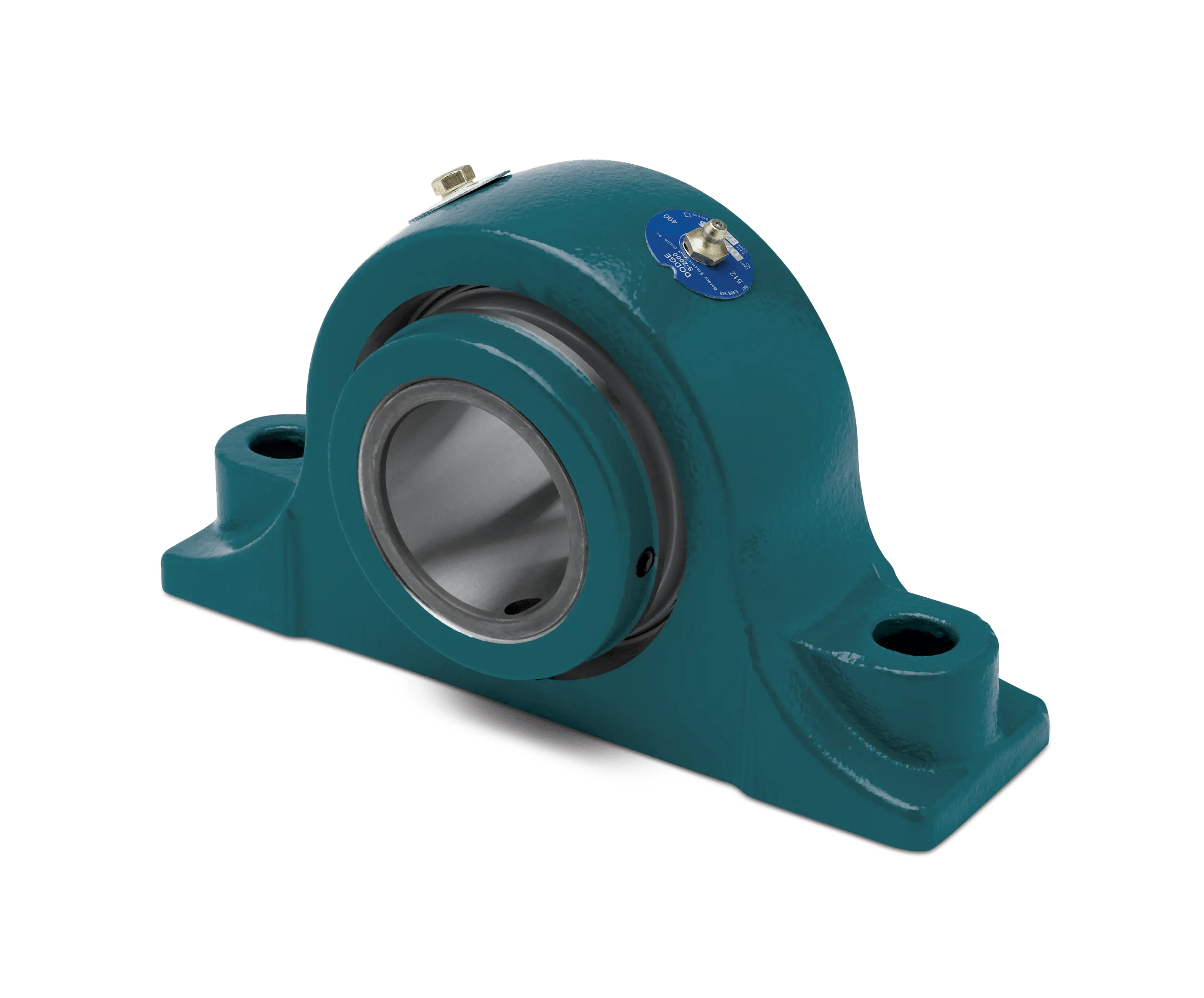

Dodge® 071394 203 Type E/S2000 Pillow Block Roller Bearing Unit, 2-3/16 in Dia Bore, 7.63 to 7.88 in L Bolt Center-to-Center, 2-1/2 in Base to Bore Centerline, 9.62 in OAL x 5 in OAH, Alternate Part Number: EP2B-S2-203R

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD071394
  • Alt Part Number: EP2B-S2-203R
  • MPN: 071394
  • UPC: 782476186234
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.

Dodge® Pillow Block Roller Bearing Unit, Type E/S2000, Series: 203, 2-3/16 in Bore, 7.63 to 7.88 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 9.62 in Overall Length, 5 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.56 in Base Width, 65 deg Set Screw Locking Device, Trident™ Triple Lip Seal, Non-Expansion (Fixed) Expansion, 29000 lb Dynamic/27000 lb Static Load, 1950 rpm Maximum, Cast Iron

Base Width      :      2.56 in
Base to Bore Centerline      :      2-1/2 in
Bolt Center-to-Center Length      :      7.63 to 7.88 in
Bore Diameter      :      2-3/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Load Capacity      :      29000 lb Dynamic/27000 lb Static
Locking Device      :      65 deg Set Screw
Material      :      Cast Iron
Maximum Speed      :      1950 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      5 in
Overall Length      :      9.62 in
Seal Type      :      Trident™ Triple Lip
Series      :      203
Type      :      Type E/S2000
  • Misalignment capability
  • Expansion capability
  • Superior sealing
