Dodge® 070559 DOD070559

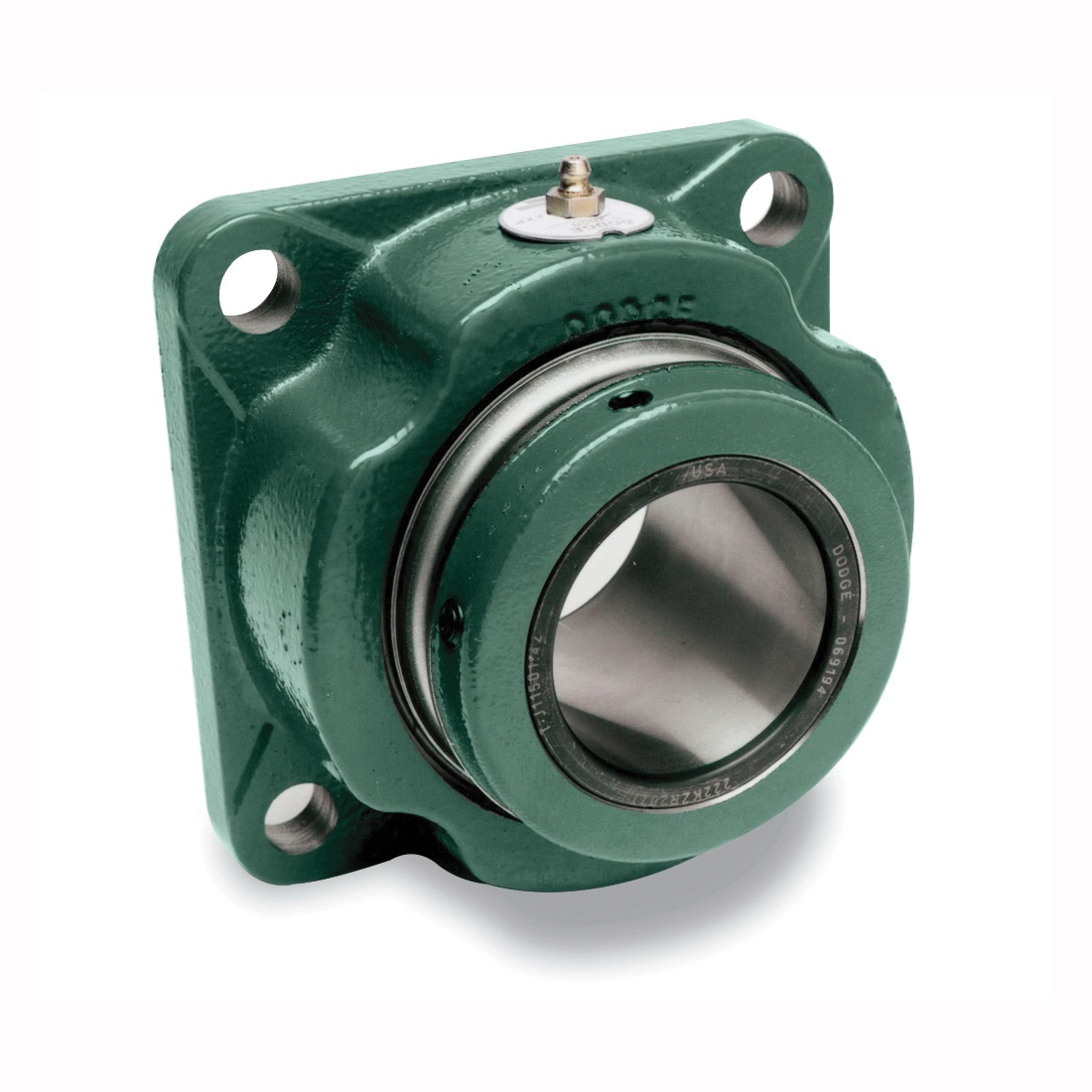

F4S-S2-315R Dodge® 070559 Non-Expansion Square Type S-2000 Spherical Roller Bearing Unit, 3-15/16 in Dia Bore, 7.61 in L Bolt Center-to-Center, 10-3/4 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 9-1/4 in OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD070559
- Alt Part Number: F4S-S2-315R
- MPN: 070559
- UPC: 782475306701
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
Dodge® Spherical Roller Bearing Unit, Non-Expansion Square Type S-2000, 3-15/16 in Bore, 7.61 in Bolt Center-to-Center Length, 10-3/4 in Diameter Bolt Circle, 4-Bolt Base Flange Mounting, 9-1/4 in Overall Length/Diameter, 4.47 in Overall Depth, 9-1/4 in Overall Height, 65 deg Set Screw Locking Device, 83000 lb Dynamic/104000 lb Static Load, 1075 rpm Maximum, -20 to 250 deg F, Uncoated
| Bolt Center-to-Center Length | : | 7.61 in |
| Bolt Circle Diameter | : | 10-3/4 in |
| Bore Diameter | : | 3-15/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 83000 lb Dynamic/104000 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Maximum Speed | : | 1075 rpm |
| Overall Depth | : | 4.47 in |
| Overall Height | : | 9-1/4 in |
| Overall Length/Diameter | : | 9-1/4 in |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Non-Expansion Square Type S-2000 |
- Corrosion resistant flinger blocks contaminants
- Seal land maintains full seal contact when misaligned
- Reinforced polyamide cage
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- 65 deg setscrew mounting
- Trident™ triple lip rubbing seal
