Dodge® 070368 DOD070368

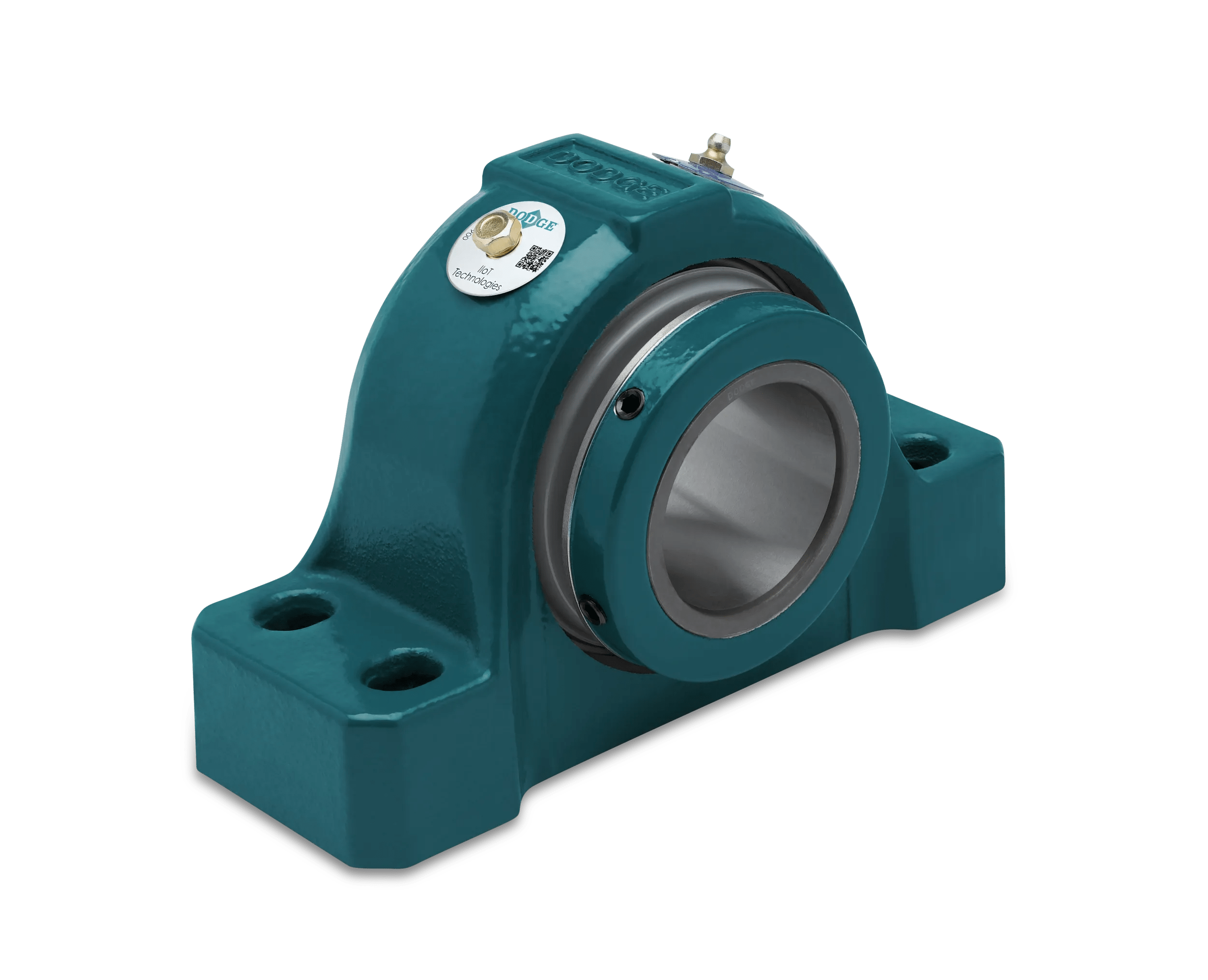

Dodge® 070368 Type S2000 Pillow Block Roller Bearing Unit, 2-15/16 in Dia Bore, 7.94 to 8.31 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10.44 in OAL x 6.44 in OAH, Alternate Part Number: P4B-S2-215R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD070368
- Alt Part Number: P4B-S2-215R
- MPN: 070368
- UPC: 782475305988
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Roller Bearing Unit, Type S2000, 2-15/16 in Bore, 7.94 to 8.31 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10.44 in Overall Length, 3.59 in Overall Width, 6.44 in Overall Height, Four-Bolt Base Mounting, Round Bore, 3-3/4 in Base Width, Springlok™ Concentric Collar Locking Device, Trident™ Triple Lip Seal, Non-Expansion (Fixed), 41500 lb Dynamic/53000 lb Static Load, -100 to 200 deg F, 1490 rpm Maximum, Cast Iron, Black Oxide
| Base Width | : | 3-3/4 in |
| Base to Bore Centerline | : | 3-1/4 in |
| Bolt Center-to-Center Length | : | 7.94 to 8.31 in |
| Bore Diameter | : | 2-15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Black Oxide |
| Load Capacity | : | 41500 lb Dynamic/53000 lb Static |
| Locking Device | : | Springlok™ Concentric Collar |
| Material | : | Cast Iron |
| Maximum Speed | : | 1490 rpm |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 6.44 in |
| Overall Length | : | 10.44 in |
| Overall Width | : | 3.59 in |
| Seal Type | : | Trident™ Triple Lip |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Type S2000 |
- High-capacity double row spherical rollers
- Permits static or dynamic misalignment up to +/- 1 deg
- Factory sealed, lubed, and adjusted
- Expansion capability up to 3/8 in
- Flinger to shield seal and bearing from contamination/damage
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
