Dodge® 070017 DOD070017
  1. pin-int

Dodge® 070017 DOD070017

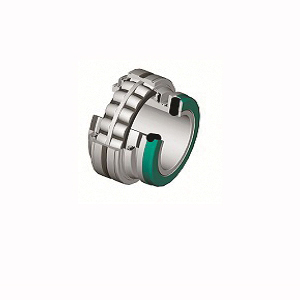

INS-S2-107L Dodge® 070017 107 Series Normal Duty Non-Expansion Spherical Roller Insert Bearing, 1-7/16 in Dia Bore, 3.15 in OD, 2 Rows, 2.53 in W, 20800 lb Dynamic/21000 lb Static Load, Alternate Part Number: INS-S2-107L

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD070017
  • Alt Part Number: INS-S2-107L
  • MPN: 070017
  • UPC: 782475315802
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Replacement inserts for S-2000 spherical roller bearings have higher ratings and long L10 life. A variety of sealing options for easy application and protection make the S-2000 a high-capacity bearing with maximum life.

Dodge® Spherical Roller Insert Bearing, Normal Duty Non-Expansion, Series: 107 Series, 1-7/16 in Bore Dia, 3.15 in Outside Dia, 2 Rows, 2.53 in Width, 20800 lb Dynamic/21000 lb Static, Steel Bearing, Metal Seal, Polyamide Cage, 3600 rpm Maximum, -20 to 250 deg F, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      1-7/16 in
Cage Material      :      Polyamide
Finish      :      Uncoated
Load Capacity      :      20800 lb Dynamic/21000 lb Static
Maximum Speed      :      3600 rpm
Number of Rows      :      2
Outside Diameter      :      3.15 in
Seal Material      :      Metal
Series      :      107
Temperature Rating      :      -20 to 250 deg F
Type      :      Normal Duty Non-Expansion
Width      :      2.53 in
  • Larger rollers
  • More contact area
  • Case-carburized inner rings resist cracking
  • Static or dynamic misalignment up to +/-1 deg
  • Expansion capability up to 3/8 in
  • High-speed for relatively clean environments
  • Flinger to shield seal and bearing from contamination/damage
  • Seal operates up to +/-1 deg of misalignment
  • Patented design
  • Misalignment capability
  • Expansion capability
  • Superior sealing
