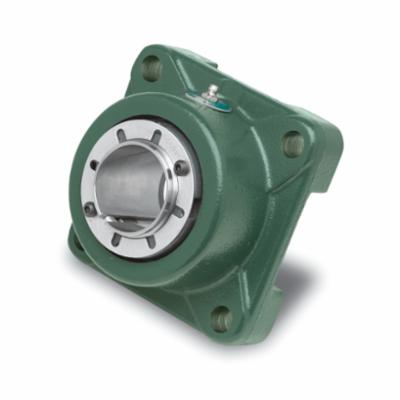

Dodge® 069731 DOD069731
F4S-IP-115RE Dodge® 069731 115 Expansion Imperial Triple Lip Flange Mount Roller Bearing Unit, 1-15/16 in Dia Bore, 4.06 in L Bolt Center-to-Center, 5-1/2 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 5.31 in OAL/Dia, Alternate Part Number: F4S-IP-115RE
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD069731
- Alt Part Number: F4S-IP-115RE
- MPN: 069731
- UPC: 782475309610
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Flange Mount Roller Bearing Unit, Expansion Imperial Triple Lip, Series: 115, 1-15/16 in Bore, 4.06 in Bolt Center-to-Center Length, 5-1/2 in Diameter Bolt Circle, 4-Bolt Base Flange Mounting, 5.31 in Overall Length/Diameter, 3.16 in Overall Depth, 5.3 in Overall Height, Adapter Mounted Locking Device, 22000 lb Dynamic/24000 lb Static Load, 3520 rpm Maximum, Uncoated
| Bolt Center-to-Center Length | : | 4.06 in |
| Bolt Circle Diameter | : | 5-1/2 in |
| Bore Diameter | : | 1-15/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 22000 lb Dynamic/24000 lb Static |
| Locking Device | : | Adapter Mounted |
| Maximum Speed | : | 3520 rpm |
| Overall Depth | : | 3.16 in |
| Overall Height | : | 5.3 in |
| Overall Length/Diameter | : | 5.31 in |
| Series | : | 115 |
| Type | : | Expansion Imperial Triple Lip |
- Steel cage with guide rings offers precision roller guidance
- Corrosion resistant flinger blocks contaminants
- Seal/land maintains full seal contact when misaligned
- Steel cage provide high temperature and high speed capabilities
- Patented triple-lip nitrile seal resists heat and chemical breakdown
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
