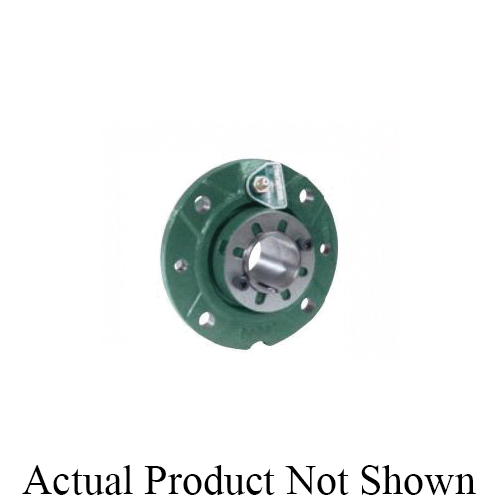

Dodge® 069692 DOD069692
F4R-IP-300LE Dodge® 069692 215 Series Expansion Imperial Flange Mount Roller Bearing Unit, 3 in Dia Bore, 5.56 in L Bolt Center-to-Center, 7.88 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 9-1/4 in OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD069692
- Alt Part Number: F4R-IP-300LE
- MPN: 069692
- UPC: 782475313778
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.
Dodge® Flange Mount Roller Bearing Unit, Expansion Imperial, Series: 215 Series, 3 in Bore Dia, 5.56 in Bolt Center-to-Center Length, 7.88 in Bolt Circle, 4-Bolt Base Flange Mounting Type, 9-1/4 in Overall Length/Diameter, 3.81 in Overall Depth, Adapter Mounted Locking Device, Steel Bearing, Metal Seal, 41500 lb Dynamic/53000 lb Static, 3400 rpm Maximum, -100 to 200 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 5.56 in |
| Bolt Circle Diameter | : | 7.88 in |
| Bore Diameter | : | 3 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 41500 lb Dynamic/53000 lb Static |
| Locking Device | : | Adapter Mounted |
| Maximum Speed | : | 3400 rpm |
| Overall Depth | : | 3.81 in |
| Overall Length/Diameter | : | 9-1/4 in |
| Seal Material | : | Metal |
| Series | : | 215 |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Expansion Imperial |
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
- Seal/land maintains full seal contact when misaligned
- Corrosion resistant flinger blocks contaminants
- Steel cage with guide rings offers precision roller guidance
- Metallic labyrinth seal and steel cage provide high temperature and high-speed capabilities
