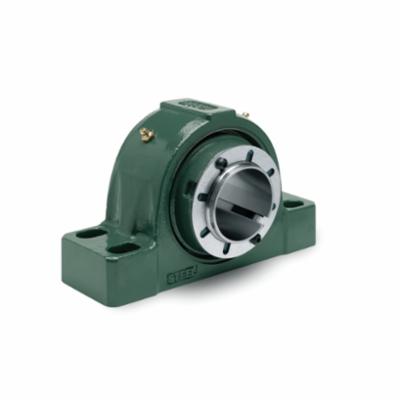

Dodge® 069536 Imperial Solid Pillow Block Roller Bearing Unit, 4-15/16 in Dia Bore, 15 to 16 in L Bolt Center-to-Center, 5-1/2 in Base to Bore Centerline, 18.63 in OAL x 11.13 in OAH

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD069536
  • Alt Part Number: P4B-IP-415R
  • MPN: 069536
  • UPC: 782475308613
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.

Dodge® Pillow Block Roller Bearing Unit, Imperial Solid, 4-15/16 in Bore, 15 to 16 in Bolt Center-to-Center Length, 5-1/2 in Base to Bore Centerline, 18.63 in Overall Length, 5.98 in Overall Width, 11.13 in Overall Height, Four-Bolt Base Mounting, Round Bore, 5.38 in Base Width, Adapter Mounted Locking Device, Trident™ Triple Lip Seal, Non-Expansion (Fixed) Expansion, 146000 lb Dynamic/196000 lb Static Load, -100 to 200 deg F, 1175 rpm Maximum, Cast Iron, Uncoated

Base Width      :      5.38 in
Base to Bore Centerline      :      5-1/2 in
Bolt Center-to-Center Length      :      15 to 16 in
Bore Diameter      :      4-15/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Uncoated
Load Capacity      :      146000 lb Dynamic/196000 lb Static
Locking Device      :      Adapter Mounted
Material      :      Cast Iron
Maximum Speed      :      1175 rpm
Mounting Type      :      Four-Bolt Base
Overall Height      :      11.13 in
Overall Length      :      18.63 in
Overall Width      :      5.98 in
Seal Type      :      Trident™ Triple Lip
Temperature Rating      :      -100 to 200 deg F
Type      :      Imperial Solid
  • Factory lubed, sealed and adjusted, ready to slip onto the shaft
  • Patented imperial push/pull adapter mounting system
  • Eliminates need for feeler gauges
  • Easy and intuitive removal method
  • Seal operates up to +/- 1 deg of misalignment
