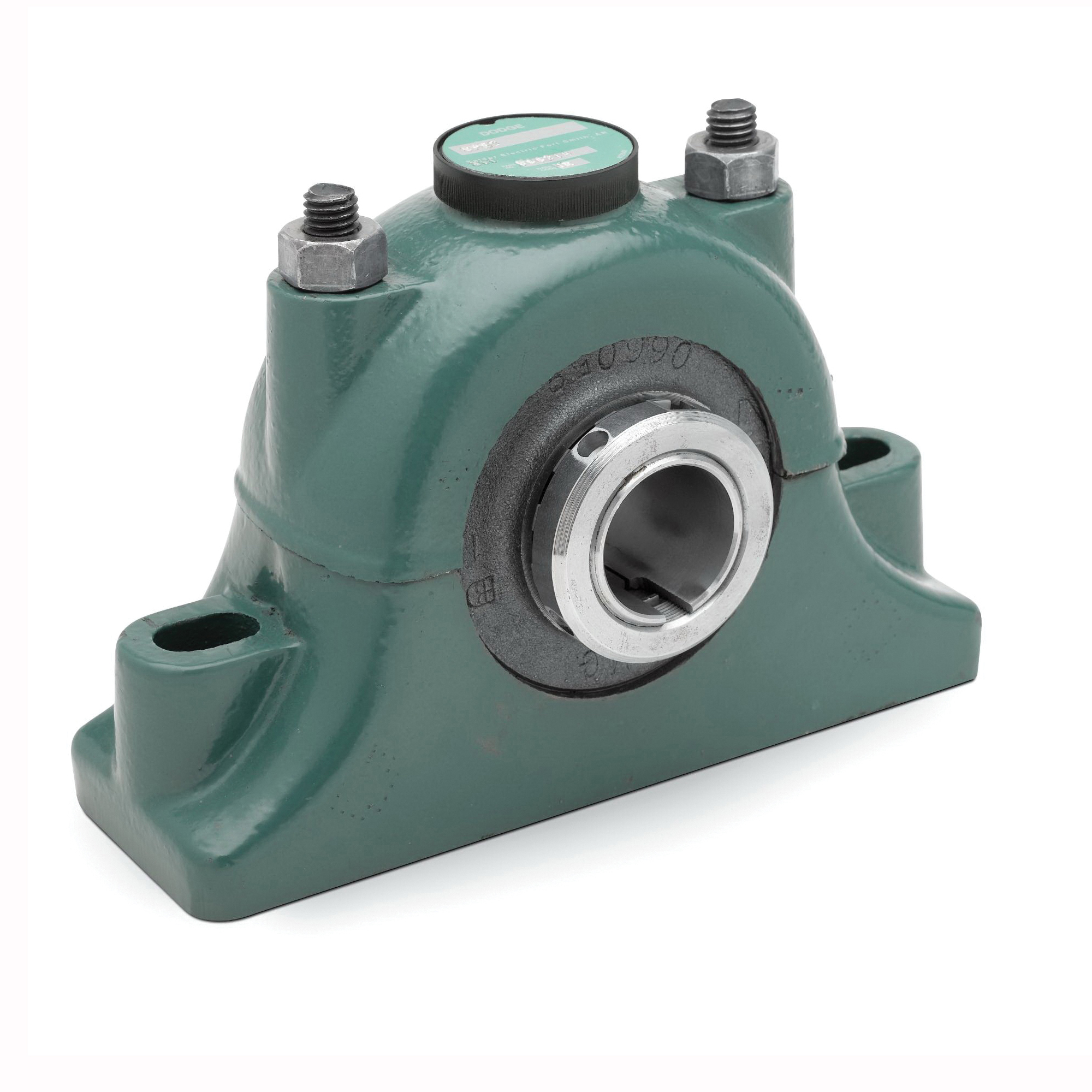

Dodge® 066310 DOD066310

Dodge® P2B-SD-211E (066310) is a Series 215 special duty pillow block roller bearing unit with a 2-11/16 in tapered bore. It uses two-bolt base mounting, tapered adapter sleeve locking, a piston ring seal, and an expansion design. Load capacity is 21331 lb. Dodge® special duty double row tapered roller bearings have the highest capacity of all Dodge® tapered roller bearings. they carry heavy radial loads and combined radial and thrust loads. The maximum recommended load which can be applied is limited by various components in the system such as bearing, housing, shaft, shaft attachment, speed and life requirements. Dodge® special duty tapered roller bearings have been applied successfully even when these limits have been exceeded under controlled operating conditions.

Dodge® P2B-SD-211E (066310) Pillow Block Roller Bearing Unit, Special Duty, Series: 215, 2-11/16 in Bore, 11 to 12-1/2 in Bolt Center-to-Center Length, 4-3/4 in Base to Bore Centerline, 14-1/4 in Overall Length, 5-3/4 in Overall Width, 9.88 in Overall Height, Two-Bolt Base Mounting, Tapered Bore, 4-3/4 in Base Width, Tapered Adapter Sleeve Locking Device, Piston Ring Seal, Expansion, 21331 lb Load, 1830 rpm Maximum, Cast Iron, Black Oxide

• Capable of handling any combination of radial and thrust load
• Effective dual piston ring seals
• Adapter nut allows for easier installation and removal
• Elongated bolt holes
• Tapered roller assemblies

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_004066_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_036054_Manual.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_066213_Line_Drawing.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_104003_Specification_Sheet.pdf
