Dodge® 065294 DOD065294

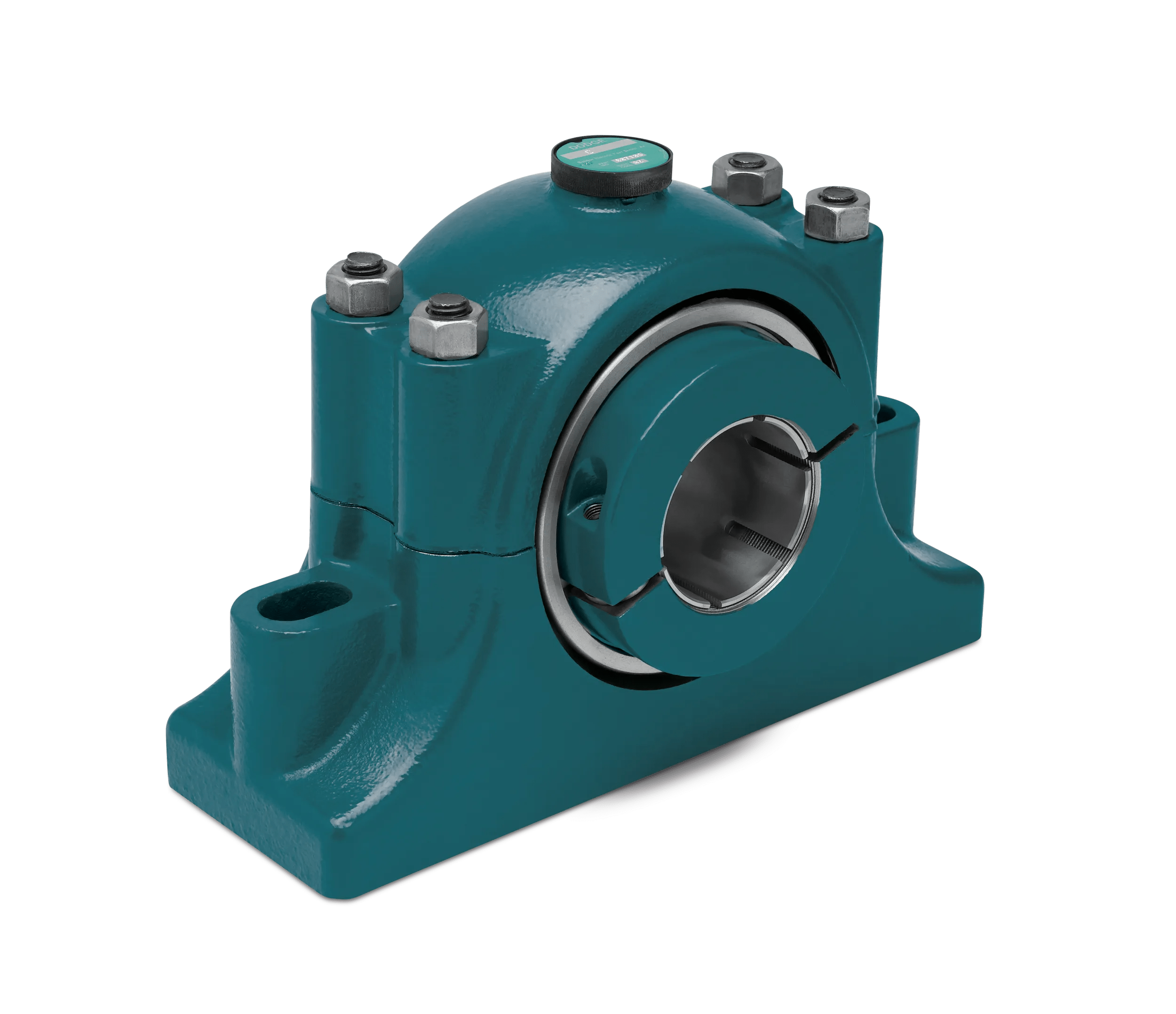

Dodge® 065294 207 Special Duty Type C Pillow Block Roller Bearing Unit, 2-7/16 in Dia Bore, 10.13 to 11.38 in L Bolt Center-to-Center, 4 in Base to Bore Centerline, 13-1/4 in OAL x 8.56 in OAH, Alternate Part Number: P2B-C-207
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD065294
- Alt Part Number: P2B-C-207
- MPN: 065294
- UPC: 782475035458
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Pillow Block Roller Bearing Unit, Special Duty Type C, Series: 207, 2-7/16 in Bore, 10.13 to 11.38 in Bolt Center-to-Center Length, 4 in Base to Bore Centerline, 13-1/4 in Overall Length, 6 in Overall Width, 8.56 in Overall Height, Two-Bolt Base Mounting, Round Bore, 4-1/4 in Base Width, Springlok™ Concentric Collar Locking Device, Labyrinth Seal, Non-Expansion (Fixed), 3000 lb Dynamic Load, 1750 rpm Maximum, Cast Iron, Black Oxide
| Base Width | : | 4-1/4 in |
| Base to Bore Centerline | : | 4 in |
| Bolt Center-to-Center Length | : | 10.13 to 11.38 in |
| Bore Diameter | : | 2-7/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Black Oxide |
| Load Capacity | : | 3000 lb Dynamic |
| Locking Device | : | Springlok™ Concentric Collar |
| Material | : | Cast Iron |
| Maximum Speed | : | 1750 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 8.56 in |
| Overall Length | : | 13-1/4 in |
| Overall Width | : | 6 in |
| Seal Type | : | Labyrinth |
| Series | : | 207 |
| Type | : | Special Duty Type C |
- Positive concentric clamp sleeve mounting
- Steel multiple labyrinth seals
- Two quality single row
- Tapered roller assemblies
- Rugged two-piece housing
- Elongated bolt holes
