Dodge® 064735 DOD064735

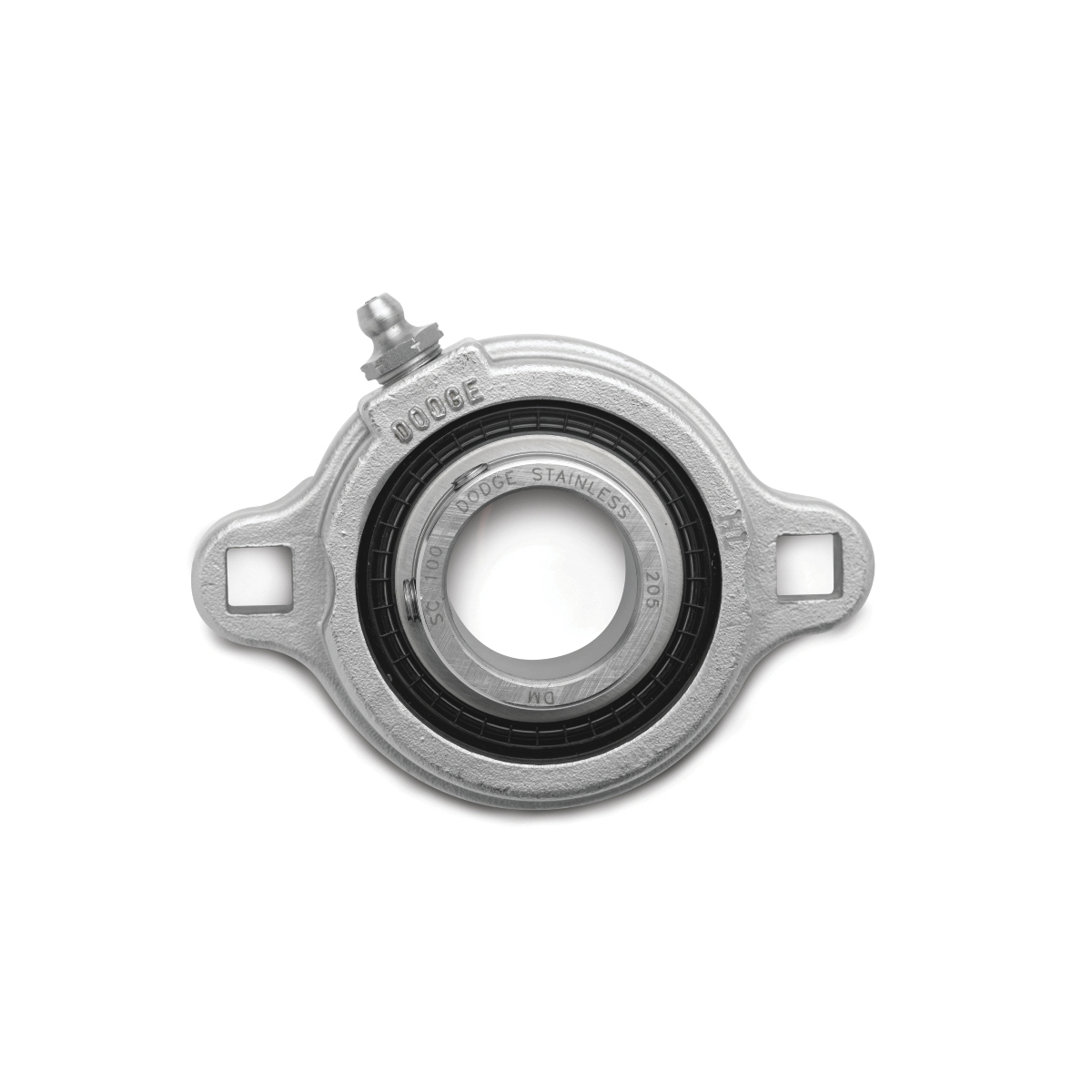

LFT-DL-104 Dodge® 064735 207 Series Normal Duty Non-Expansion Ball Bearing Unit With Square Bolt Holes, 1-1/4 in Dia Bore, 3.94 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.82 in OAL/Dia, Alternate Part Number: LFT-DL-104
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD064735
- MPN: 064735
- UPC: 782476175931
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 207 Series, 1-1/4 in Bore Dia, 3.94 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting Type, 4.82 in Overall Length/Diameter, 1.64 in Overall Depth, 3-1/2 in Overall Height, D-LOK® Concentric Clamp Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 5759 lb Dynamic/3461 lb Static, 5500 rpm Maximum, Powder Coated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 3.94 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt Base |
| Load Capacity | : | 5759 lb Dynamic/3461 lb Static |
| Locking Device | : | D-LOK® Concentric Clamp Collar |
| Maximum Speed | : | 5500 rpm |
| Overall Depth | : | 1.64 in |
| Overall Height | : | 3-1/2 in |
| Overall Length/Diameter | : | 4.82 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | 207 |
| Type | : | Normal Duty Non-Expansion |
- DualGuard™ seal with rubberized flinger is standard
- Interchangeable mounting dimensions with most competitive products
- Anti-rotation device prevents insert rotation associated with heavy loads, vibration, unbalanced loads and high-speed applications
- +/-2 deg static misalignment
- Wide inner ring design
- Light duty flange
