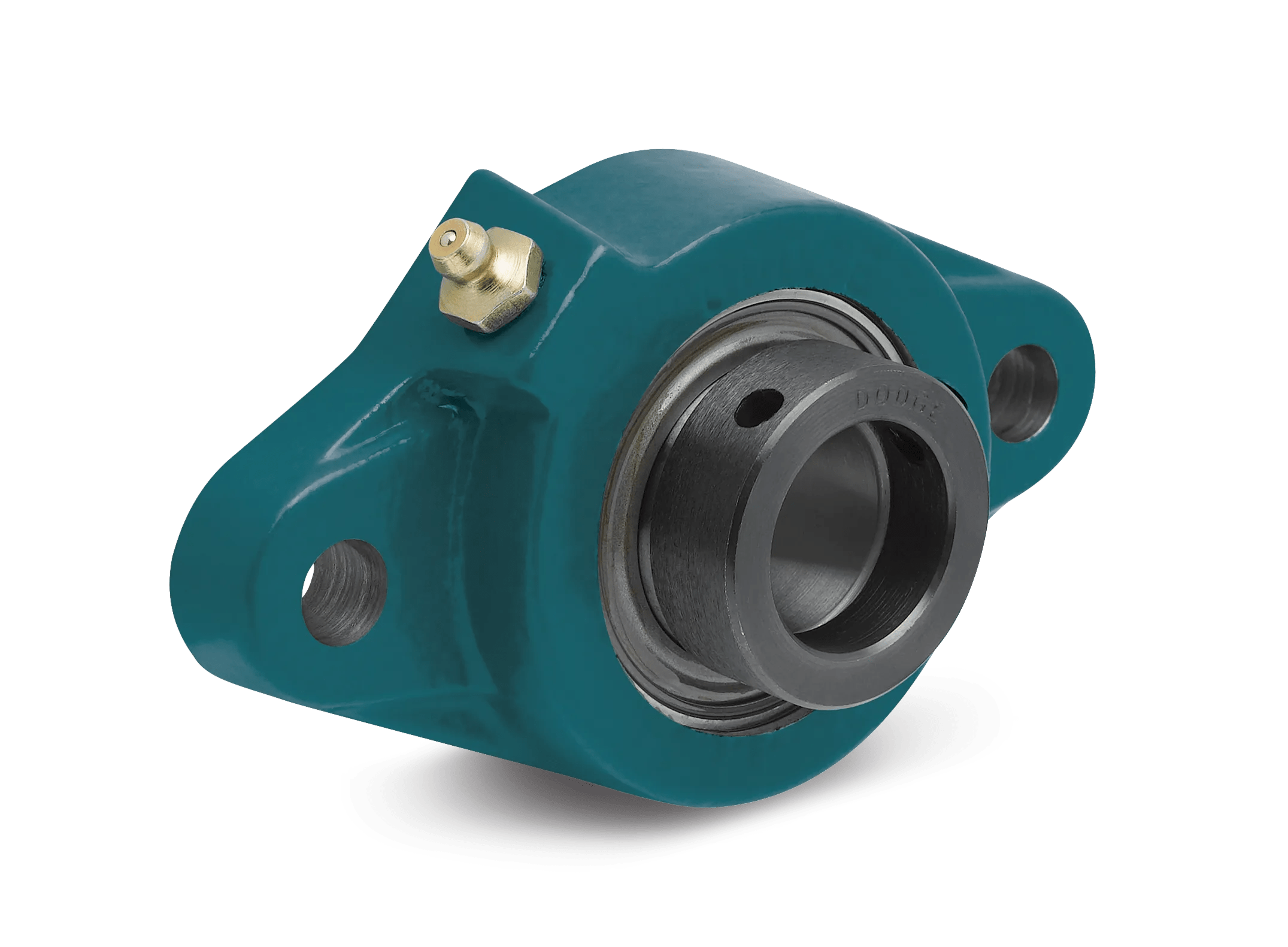

Dodge® 058779 DOD058779
F2B-SXV-107-NL Dodge® 058779 207 Intermediate Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 5.12 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 6.13 in OAL/Dia, Alternate Part Number: F2B-SXV-107-NL
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD058779
- Alt Part Number: F2B-SXV-107-NL
- MPN: 058779
- UPC: 782475419951
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion Single Lip, Series: 207, 1-7/16 in Bore Dia, 5.12 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting Type, 6.13 in Overall Length/Diameter, 1.87 in Overall Depth, 3-3/4 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, 5759 lb Dynamic/3461 lb Static, 5500 rpm Maximum, 225 to 400 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 5.12 in |
| Bore Diameter | : | 1-7/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt Base |
| Load Capacity | : | 5759 lb Dynamic/3461 lb Static |
| Locking Device | : | Eccentric Collar |
| Maximum Speed | : | 5500 rpm |
| Overall Depth | : | 1.87 in |
| Overall Height | : | 3-3/4 in |
| Overall Length/Diameter | : | 6.13 in |
| Series | : | 207 |
| Temperature Rating | : | 225 to 400 deg F |
| Type | : | Intermediate Duty Non-Expansion Single Lip |
- Narrow inner ring design
- Fiberglass reinforced nylon cage
- Grade 10 balls for quiet operation
- Proguard™ single lip seal
- No groove in housing for end cover
- No lube sealed for life
