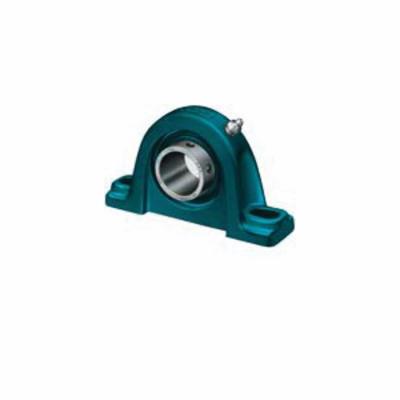

Dodge® 058630 DOD058630
Dodge® 058630 207 Normal Duty Non-Expansion Screw Conveyor Single Lip Hanger Ball Bearing Unit, 1-3/8 in Dia Bore, 3.88 in OD, 1.71 in W, Steel Bearing, Set Screw Collar Locking, Alternate Part Number: SCHB-SC-106
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD058630
- Alt Part Number: SCHB-SC-106
- MPN: 058630
- UPC: 782475331659
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Hanger Ball Bearing Unit, Normal Duty Non-Expansion Screw Conveyor Single Lip, Series: 207, 1-3/8 in Bore, 3.88 in OD, 1.71 in Width, 5759 lb Dynamic/3461 lb Static Load, Set Screw Collar Locking, Steel Bearing, Nylon Cage, -225 to 400 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-3/8 in |
| Cage Material | : | Nylon |
| Finish | : | Powder Coated |
| Load Capacity | : | 5759 lb Dynamic/3461 lb Static |
| Locking Type | : | Set Screw Collar |
| Outside Diameter | : | 3.88 in |
| Series | : | 207 |
| Temperature Rating | : | -225 to 400 deg F |
| Type | : | Normal Duty Non-Expansion Screw Conveyor Single Lip |
| Width | : | 1.71 in |
- The ball cage is made of heat-stabilized nylon with 33% fill short fiberglass reinforcement for added strength
- Its premium features make it the most reliable set screw mounted ball bearing on the market and provides the user unmatched quality and true total value
- The nylon material provides a natural lubricity for longer life
- An anti-rotation pin prevents rotation of the outer race within the housing
- Simple and effective, it makes system inserts easier to replace
