Dodge® 057752 DOD057752

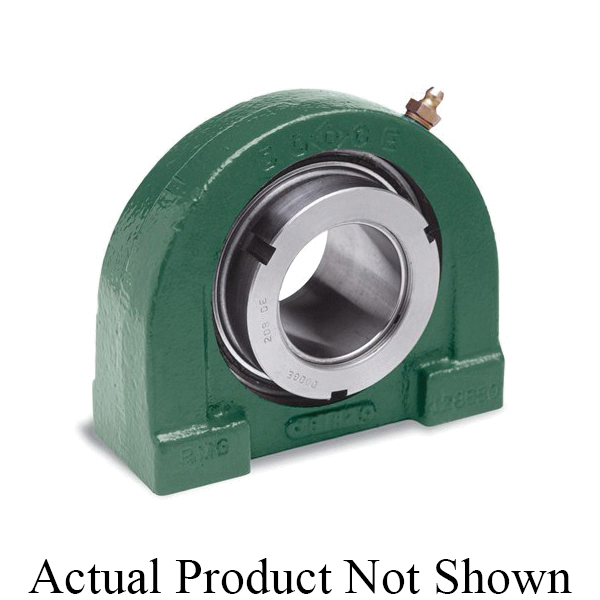

Dodge® 057752 206 Normal Duty Pillow Block Ball Bearing Unit, 1-1/4 in Dia Bore, 3 in L Bolt Center-to-Center, 1.69 in Base to Bore Centerline, 4 in OAL x 3.38 in OAH, Alternate Part Number: TB-SC-104S-NL
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD057752
- Alt Part Number: TB-SC-104S-NL
- MPN: 057752
- UPC: 782475147458
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Ball Bearing Unit, Normal Duty, Series: 206, 1-1/4 in Bore, 3 in Bolt Center-to-Center Length, 1.69 in Base to Bore Centerline, 4 in Overall Length, 1.52 in Overall Width, 3.38 in Overall Height, Tapped Base Mounting, Round Bore, 1-1/2 in Base Width, 65 deg Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 4368 lb Dynamic/2538 lb Static Load, 6500 rpm Maximum, Cast Iron, Powder Coated
| Base Width | : | 1-1/2 in |
| Base to Bore Centerline | : | 1.69 in |
| Bolt Center-to-Center Length | : | 3 in |
| Bore Diameter | : | 1-1/4 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Powder Coated |
| Load Capacity | : | 4368 lb Dynamic/2538 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 6500 rpm |
| Mounting Type | : | Tapped Base |
| Overall Height | : | 3.38 in |
| Overall Length | : | 4 in |
| Overall Width | : | 1.52 in |
| Seal Type | : | Single Lip |
| Series | : | 206 |
| Type | : | Normal Duty |
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed setscrew mounted ball bearings in globally interchangeable
- Unique 65 deg setscrew angle and premium cup point setscrews optimize shaft holding power without excessive inner ring distortion
- Wide inner ring design
