Dodge® 057220 DOD057220

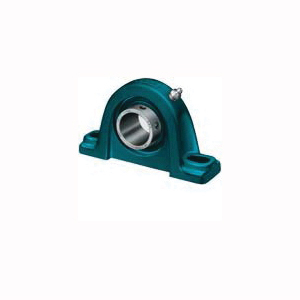

Dodge® SCHB-SC-103 (057220) 207 Normal Duty Wide Inner Ring Screw Conveyor Hanger Ball Bearing, 1-3/16 in Dia Bore, 3.88 in OD, 1.71 in W, Steel Bearing, 65 deg Set Screw Locking
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD057220
- Alt Part Number: SCHB-SC-103
- MPN: 057220
- UPC: 782475144235
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® SCHB-SC-103 (057220) is a Series 207 normal duty wide inner ring hanger ball bearing unit with a 1-3/16 in bore. Load capacity is 5759 lb Dynamic/3461 lb Static. For over 65 years, Dodge® has provided innovative solutions for the industry's toughest mounted bearing applications. This experience led to the design of the most advanced mounted ball bearing product line in the industry. Dodge® ball bearings are built in our state-of-the-art facility in Rogersville, Tennessee using the latest manufacturing technologies to produce the highest quality product available on the market today.
Dodge® SCHB-SC-103 (057220) Screw Conveyor Hanger Ball Bearing, Normal Duty Wide Inner Ring, Series: 207, 1-3/16 in Bore, 3.88 in OD, 1.71 in Width, 5759 lb Dynamic/3461 lb Static Load, 65 deg Set Screw Locking, Steel Bearing, Nylon Cage, 5500 rpm Maximum, 225 to 400 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-3/16 in |
| Cage Material | : | Nylon |
| Finish | : | Powder Coated |
| Load Capacity | : | 5759 lb Dynamic/3461 lb Static |
| Locking Type | : | 65 deg Set Screw |
| Maximum Speed | : | 5500 rpm |
| Outside Diameter | : | 3.88 in |
| Series | : | 207 |
| Temperature Rating | : | 225 to 400 deg F |
| Type | : | Normal Duty Wide Inner Ring |
| Width | : | 1.71 in |
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Grade 10 balls
