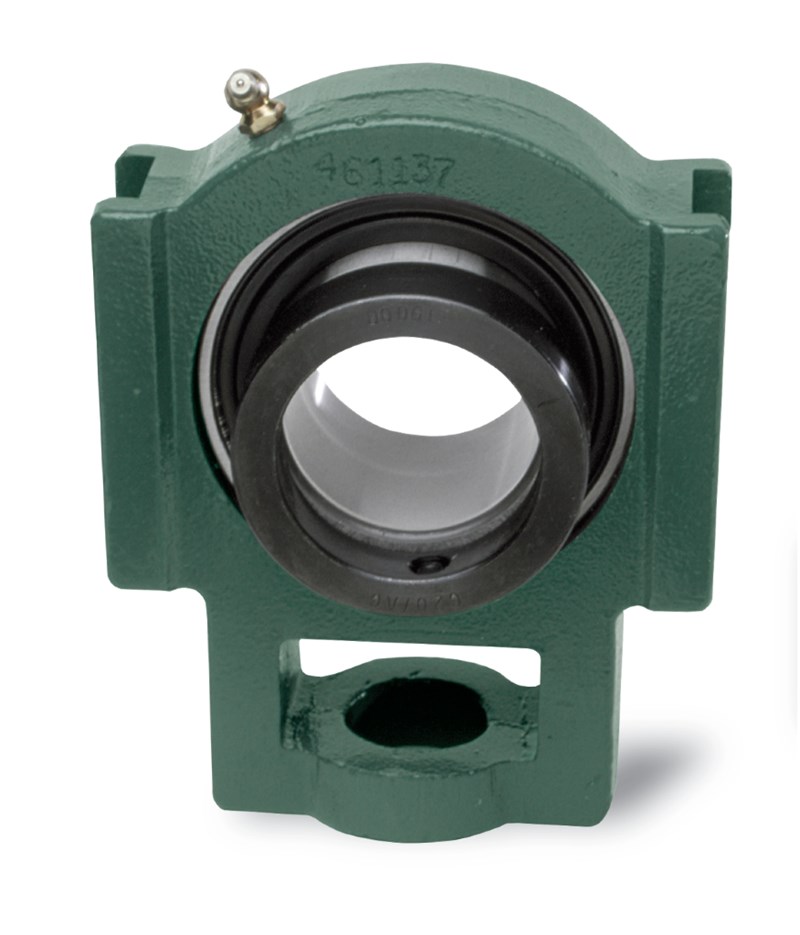

Dodge® 052722 DOD052722
Dodge® 052722 210 Non-Expansion Normal Duty Single Lip Wide Slot Take-Up Ball Bearing, 1-15/16 in Dia Bore, 5.82 in L x 2.01 in W x 4-3/4 in H, 7891 lb Dynamic/5213 lb Static Load
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD052722
- Alt Part Number: WSTU-DL-115
- MPN: 052722
- UPC: 782475921249
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
For concentric grip on the shaft and less vibration at higher speeds, specify Dodge® D-LOK® normal- or medium-duty mounted ball bearings. These unique, concentric collar bearings are engineered with features that assure you superior holding power with improved concentricity. Even at high speeds, the D-LOK® bearing grips the shaft tighter and more uniformly for less vibration.
Dodge® Take-Up Ball Bearing, Non-Expansion Normal Duty Single Lip Wide Slot, Series: 210, 1-15/16 in Bore, 5.82 in Length, 2.01 in Width, 4-3/4 in Height, 7891 lb Dynamic/5213 lb Static Load, For Use With: WS400 Wide Slot Take-Up Frames, Steel Bearing, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-15/16 in |
| Finish | : | Uncoated |
| Height | : | 4-3/4 in |
| Length | : | 5.82 in |
| Load Capacity | : | 7891 lb Dynamic/5213 lb Static |
| Series | : | 210 |
| Suitable For Use With | : | WS400 Wide Slot Take-Up Frames |
| Type | : | Non-Expansion Normal Duty Single Lip Wide Slot |
| Width | : | 2.01 in |
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Normal duty wide inner ring
- D-LOK® locking mechanism
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
