Dodge® 049433 DOD049433

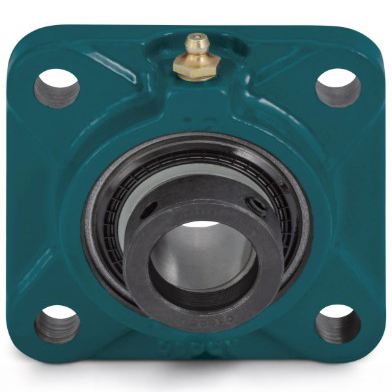

F4B-SXR-203-FF Dodge® 049433 211 Series Normal Duty Non-Expansion Ball Bearing Unit With Flingers, 2-3/16 in Dia Bore, 5.13 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 6-1/2 in OAL/Dia, Alternate Part Number: F4B-SXR-203-FF
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD049433
- Alt Part Number: F4B-SXR-203-FF
- MPN: 049433
- UPC: 782475472109
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 211 Series, 2-3/16 in Bore Dia, 5.13 in Bolt Center-to-Center Length, 4-Bolt Base Flange Mounting Type, 6-1/2 in Overall Length/Diameter, 2.65 in Overall Depth, 6-1/2 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 9755 lb Dynamic/6588 lb Static, 4000 rpm Maximum, Powder Coated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 5.13 in |
| Bore Diameter | : | 2-3/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 9755 lb Dynamic/6588 lb Static |
| Locking Device | : | Eccentric Collar |
| Maximum Speed | : | 4000 rpm |
| Overall Depth | : | 2.65 in |
| Overall Height | : | 6-1/2 in |
| Overall Length/Diameter | : | 6-1/2 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | 211 |
| Type | : | Normal Duty Non-Expansion |
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
- Wide inner ring design
- Dodge® DualGuard™ land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
