Dodge® 049383 DOD049383

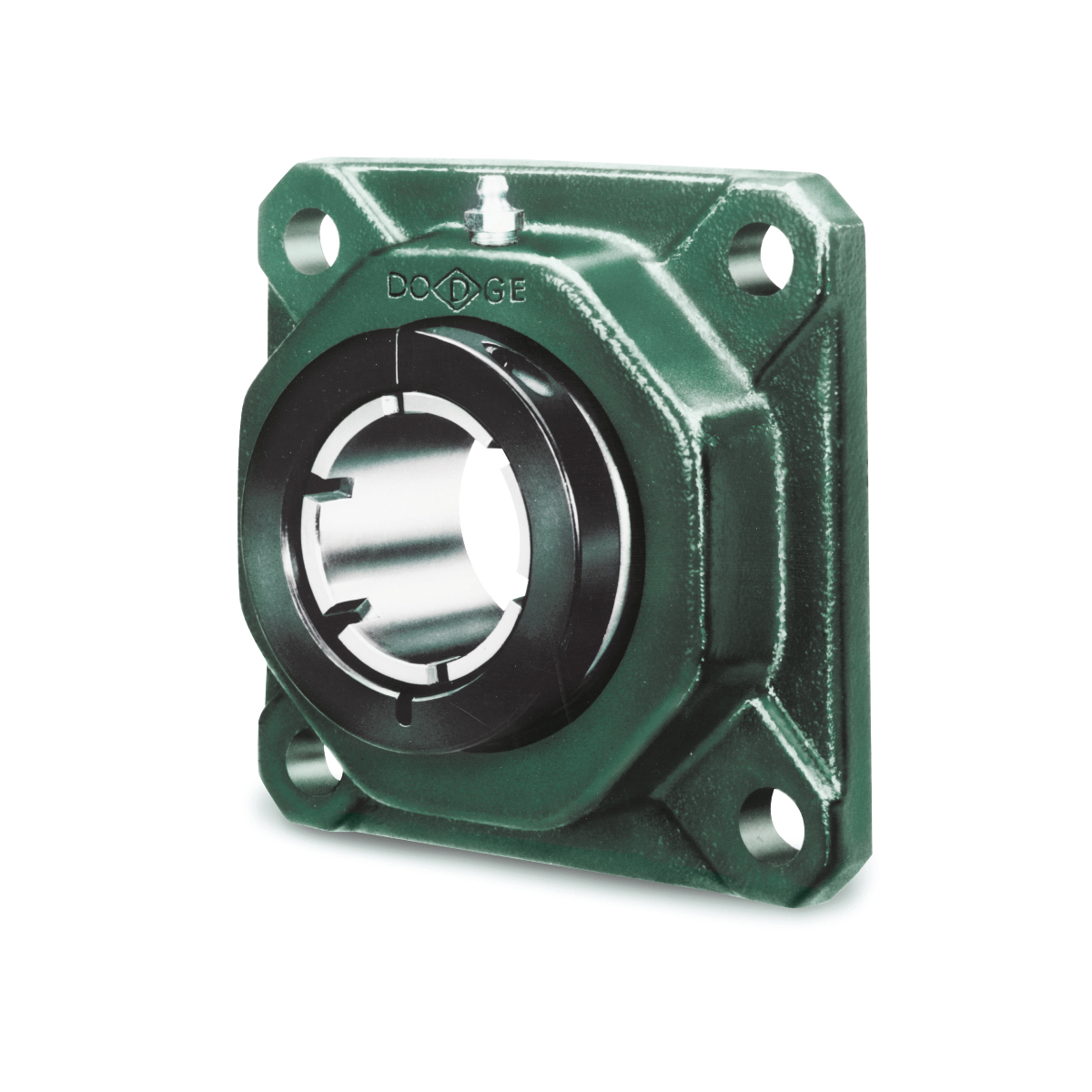

F4B-DL-211-HT Dodge® 049383 214 Series High Temperature Normal Duty Non-Expansion Ball Bearing Unit, 2-11/16 in Dia Bore, 5.88 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 7.38 in OAL/Dia, Alternate Part Number: F4B-DL-211-HT
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD049383
- Alt Part Number: F4B-DL-211-HT
- MPN: 049383
- UPC: 782475471546
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Ball Bearing Unit, High Temperature Normal Duty Non-Expansion, Series: 214 Series, 2-11/16 in Bore Dia, 5.88 in Bolt Center-to-Center Length, 4-Bolt Base Flange Mounting Type, 7.38 in Overall Length/Diameter, 2.85 in Overall Depth, 7.38 in Overall Height, D-LOK® Concentric Clamp Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 13994 lb Dynamic/9838 lb Static, 3000 rpm Maximum, 400 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 5.88 in |
| Bore Diameter | : | 2-11/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 13994 lb Dynamic/9838 lb Static |
| Locking Device | : | D-LOK® Concentric Clamp Collar |
| Maximum Speed | : | 3000 rpm |
| Overall Depth | : | 2.85 in |
| Overall Height | : | 7.38 in |
| Overall Length/Diameter | : | 7.38 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | 214 |
| Temperature Rating | : | 400 deg F |
| Type | : | High Temperature Normal Duty Non-Expansion |
- Precision hardened and honed inner and outer rings
- New rugged housing design
- Wide inner ring design
- DualGuard™ positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Premium triple lip QuadGuard™ seal
Specification Sheet
