Dodge® 048035 DOD048035

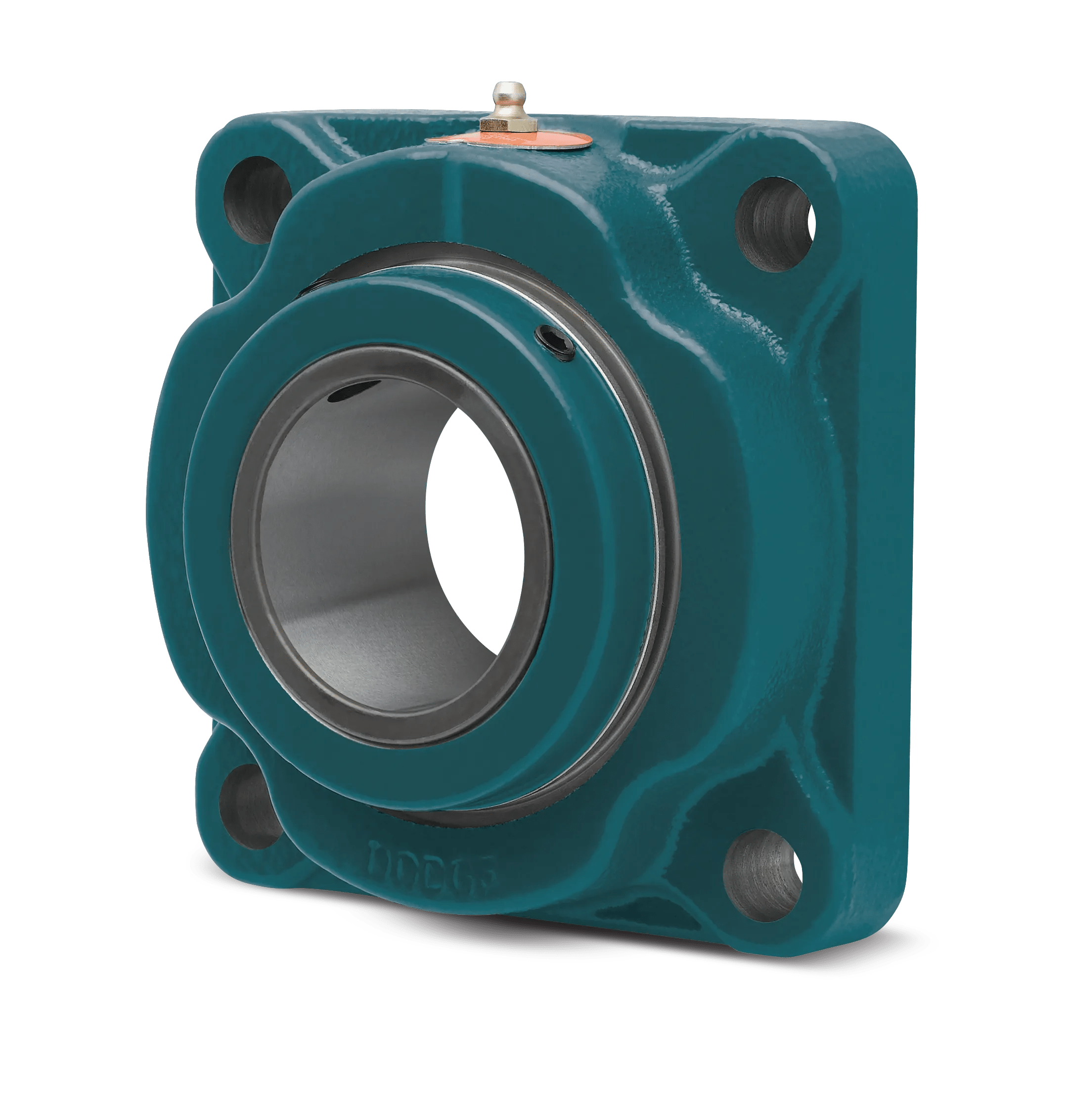

Dodge® 048035 Unisphere II Flange Mount Roller Bearing Unit, 1-1/2 in Dia Bore, 3.53 in L Bolt Center-to-Center, 5 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 4-3/4 in OAL/Dia, Alternate Part Number: F4B-UN2-108
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD048035
- Alt Part Number: F4B-UN2-108
- MPN: 048035
- UPC: 782475773497
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Flange Mount Roller Bearing Unit, Unisphere II, 1-1/2 in Bore, 3.53 in Bolt Center-to-Center Length, 5 in Diameter Bolt Circle, 4-Bolt Base Flange Mounting, 4-3/4 in Overall Length/Diameter, 1.91 in Overall Depth, 4-3/4 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 20800 lb Dynamic/21000 lb Static Load, 3000 rpm Maximum, -100 to 200 deg F, Uncoated
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 3.53 in |
| Bolt Circle Diameter | : | 5 in |
| Bore Diameter | : | 1-1/2 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 20800 lb Dynamic/21000 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 3000 rpm |
| Overall Depth | : | 1.91 in |
| Overall Height | : | 4-3/4 in |
| Overall Length/Diameter | : | 4-3/4 in |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Unisphere II |
- High-capacity double row spherical bearings
- Same rolling elements and installation ready features as the S-2000 bearing
- Springlok™ collar mount with 65 deg set screw spacing for optimum clamping force
