Dodge® 042158 DOD042158
  1. pin-int

Dodge® 042158 DOD042158

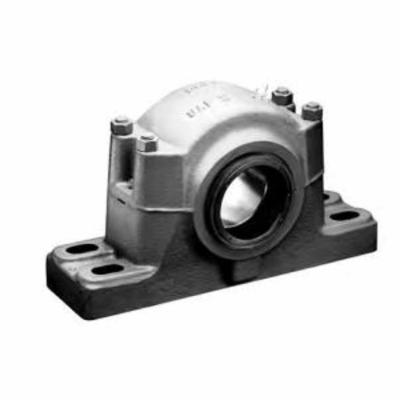

Dodge® 042158 544 Both Ends Open Split Type SAF-XT Pillow Block Housing, Four-Bolt Base Mount, 9-1/2 in Base to Bore Centerline, 32-3/4 in OAL x 19-1/4 in OAH, Alternate Part Number: H4S-SFXT-544-715

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD042158
  • MPN: 042158
  • UPC: 782475022632
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

The SAF-XT pillow block housing is designed for typical SAF dimensional interchangeability, complete with such desirable features as 4-bolt caps, cap removal pry slots, elongated bolt holes, and dimpled feet for doweling. In addition to these features the SAF-XT housing also incorporates a better grease purging/sealing system for extra protection of the bearing in a hostile environment.

Dodge® Pillow Block Housing, Both Ends Open Split Type SAF-XT, Series: 544, Four-Bolt Base Mounting, 9-1/2 in Base to Bore Centerline, 32-3/4 in Overall Length, 10.66 in Overall Width, 19-1/4 in Overall Height, Compatible Bore Diameter: 7-15/16 in, 8 in, Compatible Bearing Type: 22200K Adapter Mounted Bearing, 27.88 in Bolt Center-to-Center Length, 8-3/4 in Base Width, Cast Iron, Uncoated

Base Width      :      8-3/4 in
Base to Bore Centerline      :      9-1/2 in
Bolt Center-to-Center Length      :      27.88 in
Compatible Bearing Type      :      22200K Adapter Mounted Bearing
Compatible Bore Diameter      :      7-15/16 in, 8 in
Finish      :      Uncoated
Material      :      Cast Iron
Mounting Type      :      Four-Bolt Base
Overall Height      :      19-1/4 in
Overall Length      :      32-3/4 in
Overall Width      :      10.66 in
Series      :      544
Type      :      Both Ends Open Split Type SAF-XT
