Dodge® 038073 DOD038073
  1. pin-int

Dodge® 038073 DOD038073

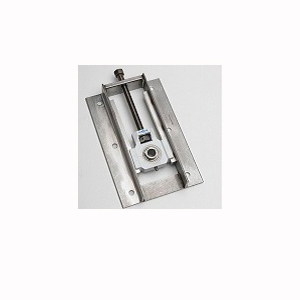

WSEZ-300X12-TUFR-SSS Dodge® 038073 WSEZ Take-Up Frame, 12 in Travel, 18 in OAL, 6-9/16 in W Base, 7-15/16 in L Bolt Center-to-Center, 5-9/16 in W Bolt Center-to-Center, Alternate Part Number: WSEZ-300X12-TUFR-SSS

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD038073
  • Alt Part Number: WSEZ-300X12-TUFR-SSS
  • MPN: 038073
  • UPC: 782476264567
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Take-Up Frame, Series: WSEZ, 12 in Travel, 18 in Overall Length, 6-9/16 in Base Width, 7-15/16 in Bolt Center-to-Center Length, 5-9/16 in Bolt Center-to-Center Width, 1-1/16 in Height to Center Line, 300 Wide Slot Frame, Stainless Steel, Pickled/Passivated

Base Width      :      6-9/16 in
Bolt Center-to-Center Length      :      7-15/16 in
Bolt Center-to-Center Width      :      5-9/16 in
Finish      :      Pickled/Passivated
Frame Type      :      300 Wide Slot
Height to Center Line      :      1-1/16 in
Material      :      Stainless Steel
Overall Length      :      18 in
Series      :      WSEZ
Travel      :      12 in
  • Take-up frames allow for the mounting of Baldor-Dodge® ball, roller and sleeve bearings
  • Take-up frame capacity is pre-engineered to exceed bearing capacity
  • Made to provide tension and shaft centers on a variety of belt and chain-type conveyors
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_038910_Specification_Sheet.pdf
