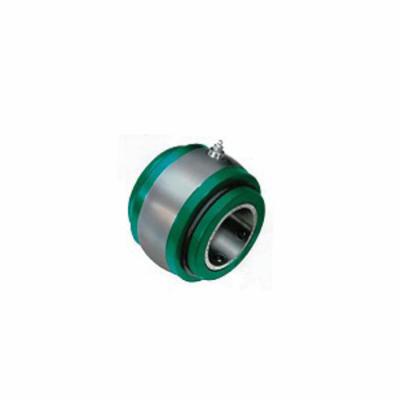

Dodge® 037644 DOD037644
S1U522-TAF-315 Dodge® 037644 Type TAF Tapered Roller Insert Bearing, 3-15/16 in Dia Bore, 7.4 in OD, 2 Rows, 6-1/4 in W, 24400 lb Dynamic/154000 lb Static Load, Alternate Part Number: S1U522-TAF-315
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD037644
- Alt Part Number: S1U522-TAF-315
- MPN: 037644
- UPC: 782475918379
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Tapered Roller Insert Bearing, Type TAF, 3-15/16 in Bore Dia, 7.4 in Outside Dia, 2 Rows, 6-1/4 in Width, 24400 lb Dynamic/154000 lb Static, Cast Iron Cage, 1530 rpm Maximum, 200 to 300 deg F
| Bore Diameter | : | 3-15/16 in |
| Cage Material | : | Cast Iron |
| Load Capacity | : | 24400 lb Dynamic/154000 lb Static |
| Maximum Speed | : | 1530 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 7.4 in |
| Temperature Rating | : | 200 to 300 deg F |
| Type | : | Type TAF |
| Width | : | 6-1/4 in |
- Factory assembled, adjusted and prelubricated
- Case hardened rollers and races
- Easy installation and maintenance
- 65 deg set screw angle Springlok™ collar/flingers with more holding power than 90 to 120 deg
- Triple rubber lip contacting seals
Specification Sheet
