Dodge® 035029 DOD035029

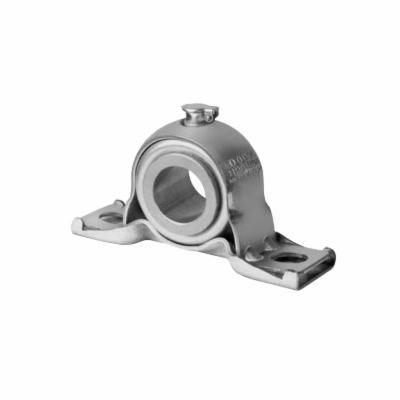

Dodge® 035029 Bronzoil Pillow Block Plain Sleeve Bearing, 15/16 in Dia Bore, 3 in L Bolt Center-to-Center, 1-1/16 in Base to Bore Centerline, 4 in OAL x 2-5/16 in OAH, Alternate Part Number: P2B-BO-015
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD035029
- Alt Part Number: P2B-BO-015
- MPN: 035029
- UPC: 782475730636
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Plain Sleeve Bearing, Bronzoil, 15/16 in Bore, 3 in Bolt Center-to-Center Length, 1-1/16 in Base to Bore Centerline, 4 in Overall Length, 1-1/8 in Overall Width, 2-5/16 in Overall Height, Two-Bolt Base Mounting, 1-3/16 in Base Width, Unsealed Seal, Non-Expansion (Fixed), 200 lb Load, 180 deg F, 1000 rpm Maximum, Steel, Uncoated
| Base Width | : | 1-3/16 in |
| Base to Bore Centerline | : | 1-1/16 in |
| Bolt Center-to-Center Length | : | 3 in |
| Bore Diameter | : | 15/16 in |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 200 lb |
| Material | : | Steel |
| Maximum Speed | : | 1000 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 2-5/16 in |
| Overall Length | : | 4 in |
| Overall Width | : | 1-1/8 in |
| Seal Type | : | Unsealed |
| Temperature Rating | : | 180 deg F |
| Type | : | Bronzoil |
- Self oiling bushing feeds oil to shaft
- Split pressed steel housing
- Statically self-aligning, non-galling, solid-film lubricating for temperature extremes
- Bushing shoulder provides self-lubricating bearing thrust surface
- Slotted bolt holes
- Oil resistant rubber grommets available for sound isolation and static electricity protection
Specification Sheet
