Dodge® 034738 DOD034738

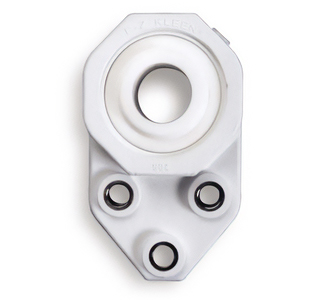

FB-PSEZ-103-P Dodge® 034738 206 Normal Duty Non-Expansion Round E-Z Kleen Mounted Bearing, 1-3/16 in Dia Bore, 1-7/8 in L Bolt Center-to-Center, 3-Bolt Bracket Flange Mount, 5-31/64 in OAL/Dia, Alternate Part Number: FB-PSEZ-103-P
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD034738
- Alt Part Number: FB-PSEZ-103-P
- MPN: 034738
- UPC: 782475004706
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Dodge® E-Z Kleen and Ultra Kleen bearings for the food and beverage industry offer an array of features that provide extended life in these challenging conditions. Dodge® has the only bearings in the industry to offer a patented triple lip seal with a rubberized flinger, the QuadGuard™ sealing system. These units also include an exclusive ball retainer, the Maxlife™ cage which helps retain lubrication and prevents washout in wet environments.
Dodge® E-Z Kleen Mounted Bearing, Normal Duty Non-Expansion Round, Series: 206, 1-3/16 in Bore, 1-7/8 in Bolt Center-to-Center Length, 3-Bolt Bracket Flange Mounting, 5-31/64 in Overall Length/Diameter, 1-11/32 in Overall Depth, 3-13/64 in Overall Height, Polymer Sleeve Locking Device, Polymer Bearing, -40 to 180 deg F, Uncoated
| Bearing Material | : | Polymer |
| Bolt Center-to-Center Length | : | 1-7/8 in |
| Bore Diameter | : | 1-3/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 3-Bolt Bracket |
| Locking Device | : | Polymer Sleeve |
| Overall Depth | : | 1-11/32 in |
| Overall Height | : | 3-13/64 in |
| Overall Length/Diameter | : | 5-31/64 in |
| Series | : | 206 |
| Temperature Rating | : | -40 to 180 deg F |
| Type | : | Normal Duty Non-Expansion Round |
- QuadGuard™ seal
- Maxlife™ cage
- Interchangeable mounting dimensions with most competitive products
- Anti-rotation device prevents insert rotation associated with light or rotating loads/high speed applications
- +/- 2 deg static misalignment
