Dodge® 034735 DOD034735

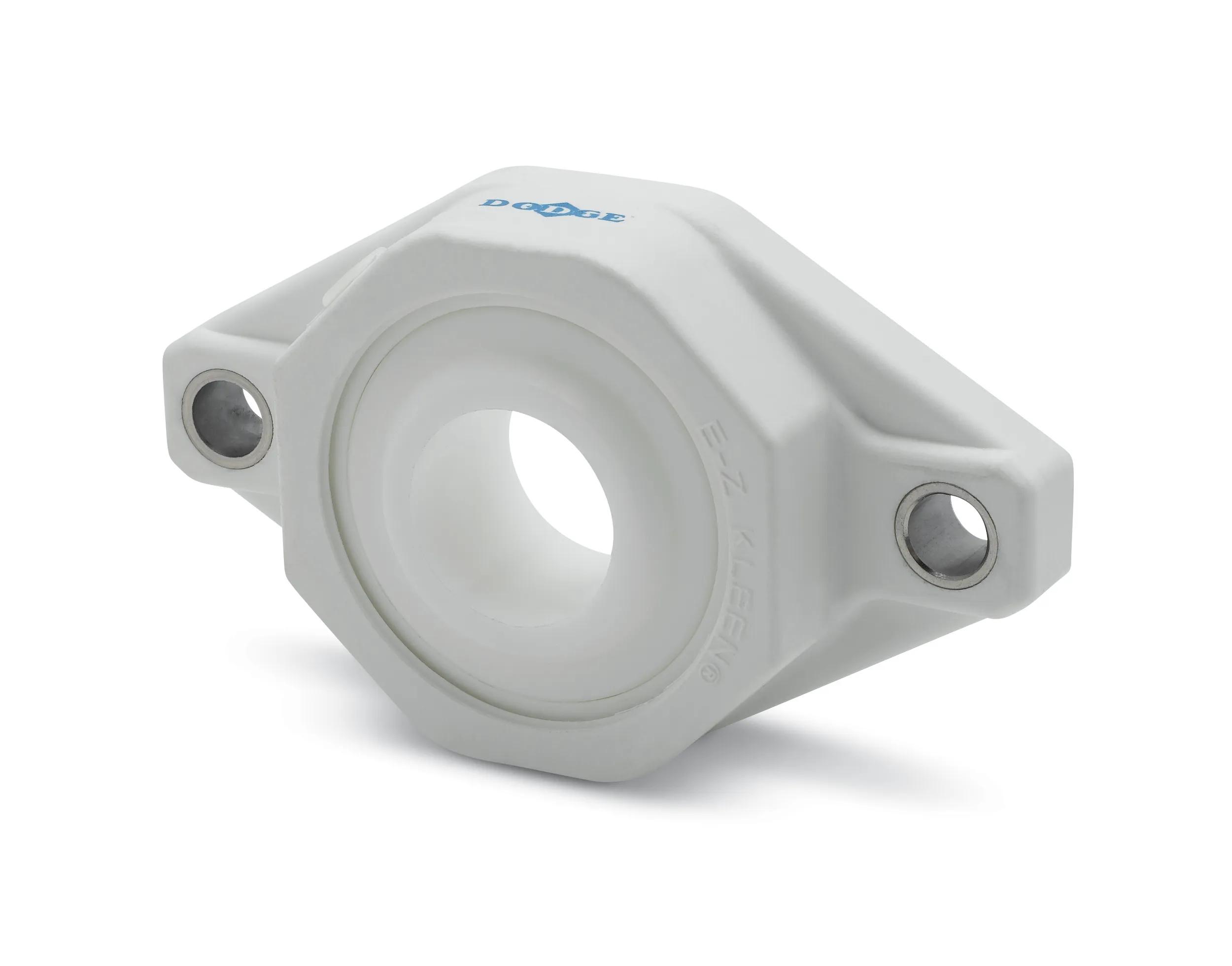

Dodge® E-Z Kleen® 034735 210 Standard-Duty Flange Mount Ball Bearing Unit, 1-15/16 in Dia Bore, 6-3/16 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 7-31/64 in OAL/Dia, Alternate Part Number: F2B-PSEZ-115-P
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD034735
- MPN: 034735
- UPC: 782475004379
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Dodge® E-Z Kleen® bearings for the food and beverage industry offer an array of features that provide extended life in these challenging conditions. Dodge® has the only bearings in the industry to offer a patented triple-lip seal with a rubberized flinger called the QuadGuard™ sealing system. These units also include an exclusive ball retainer called the Maxlife™ cage that helps retain lubrication and prevents washout in wet environments.
Dodge® E-Z Kleen® Flange Mount Ball Bearing Unit, Standard-Duty, Series: 210, 1-15/16 in Bore, 6-3/16 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 7-31/64 in Overall Length/Diameter, 1-53/64 in Overall Depth, 4-1/2 in Overall Height, Polymer Bearing, 7891 lb Dynamic/5213 lb Static Load, 3600 rpm Maximum, -40 to 180 deg F, Uncoated
| Bearing Material | : | Polymer |
| Bolt Center-to-Center Length | : | 6-3/16 in |
| Bore Diameter | : | 1-15/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt Base |
| Load Capacity | : | 7891 lb Dynamic/5213 lb Static |
| Maximum Speed | : | 3600 rpm |
| Overall Depth | : | 1-53/64 in |
| Overall Height | : | 4-1/2 in |
| Overall Length/Diameter | : | 7-31/64 in |
| Series | : | 210 |
| Temperature Rating | : | -40 to 180 deg F |
| Type | : | Standard-Duty |
- White polymer sleeve insert and housing
Specification Sheet
