Dodge® 033692 DOD033692

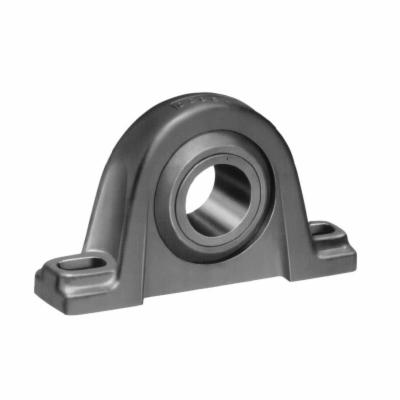

Dodge® 033692 LM800 Solidlube Pillow Block Plain Sleeve Bearing, 3/4 in Dia Bore, 3 in L Bolt Center-to-Center, 1-1/16 in Base to Bore Centerline, 4 in OAL x 2-1/16 in OAH, Alternate Part Number: P2B-LM8-012
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD033692
- Alt Part Number: P2B-LM8-012
- MPN: 033692
- UPC: 782475016945
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Plain Sleeve Bearing, Solidlube, Series: LM800, 3/4 in Bore, 3 in Bolt Center-to-Center Length, 1-1/16 in Base to Bore Centerline, 4 in Overall Length, 1 in Overall Width, 2-1/16 in Overall Height, Two-Bolt Base Mounting, 1-7/32 in Base Width, Unsealed Seal, Non-Expansion (Fixed), 66 lb Load, -40 to 800 deg F, 1300 rpm Maximum, Steel, Uncoated
| Base Width | : | 1-7/32 in |
| Base to Bore Centerline | : | 1-1/16 in |
| Bolt Center-to-Center Length | : | 3 in |
| Bore Diameter | : | 3/4 in |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 66 lb |
| Material | : | Steel |
| Maximum Speed | : | 1300 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 2-1/16 in |
| Overall Length | : | 4 in |
| Overall Width | : | 1 in |
| Seal Type | : | Unsealed |
| Series | : | LM800 |
| Temperature Rating | : | -40 to 800 deg F |
| Type | : | Solidlube |
- Good in temperature extremes and inaccessible locations
- Will function effectively in a vacuum
- Ideal where bearings are subject to dry cycles or where lube systems would be too costly
- Usable in many corrosive medias
- Will operate in submersible applications of some low viscosity liquids
