Dodge® 023691 DOD023691

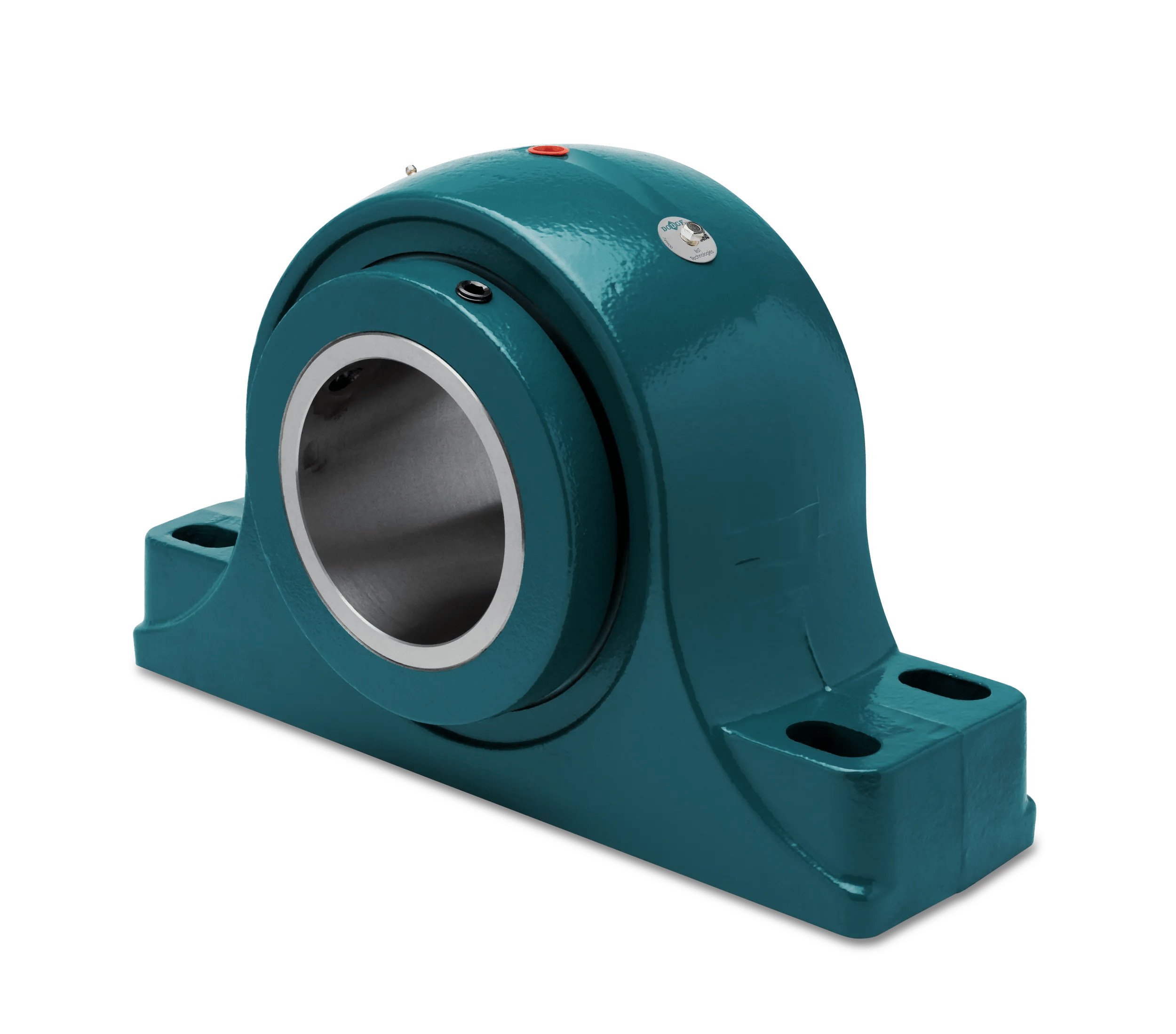

Dodge® 023691 315 Type E-Xtra Pillow Block Roller Bearing Unit, 4 in Dia Bore, 12-1/4 to 12-3/4 in L Bolt Center-to-Center, 4-1/4 in Base to Bore Centerline, 15-1/4 in OAL x 8.44 in OAH, Alternate Part Number: P4B-E-400R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD023691
- Alt Part Number: P4B-E-400R
- MPN: 023691
- UPC: 782475964048
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Roller Bearing Unit, Type E-Xtra, Series: 315, 4 in Bore, 12-1/4 to 12-3/4 in Bolt Center-to-Center Length, 4-1/4 in Base to Bore Centerline, 15-1/4 in Overall Length, 6-1/4 in Overall Width, 8.44 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-1/2 in Base Width, 65 deg Set Screw Locking Device, Trident™ Triple Lip Seal, Non-Expansion (Fixed) Expansion, 24400 lb Dynamic/154000 lb Static Load, 1530 rpm Maximum, Cast Iron, Black Oxide
| Base Width | : | 4-1/2 in |
| Base to Bore Centerline | : | 4-1/4 in |
| Bolt Center-to-Center Length | : | 12-1/4 to 12-3/4 in |
| Bore Diameter | : | 4 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Black Oxide |
| Load Capacity | : | 24400 lb Dynamic/154000 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 1530 rpm |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 8.44 in |
| Overall Length | : | 15-1/4 in |
| Overall Width | : | 6-1/4 in |
| Seal Type | : | Trident™ Triple Lip |
| Series | : | 315 |
| Type | : | Type E-Xtra |
- Factory assembled, adjusted and prelubricated
- Case hardened rollers and races
- Easy installation and maintenance
- Triple rubber lip contacting seals
Owners/User Manual
