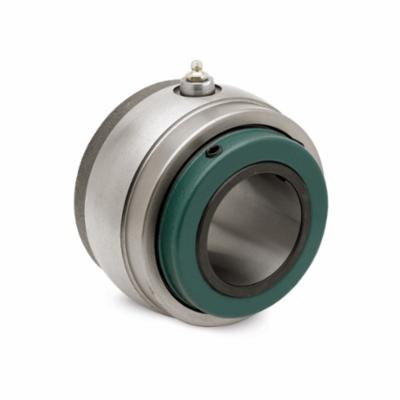

Dodge® 023509 DOD023509
S1U-DI-106R Dodge® 023509 107 Double-Interlock Tapered Roller Insert Bearing, 1-3/8 in Dia Bore, 3-5/16 in OD, 2 Rows, 2.53 in W, 5500 lb Dynamic/26000 lb Static Load, Alternate Part Number: S1U-DI-106R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD023509
- Alt Part Number: S1U-DI-106R
- MPN: 023509
- UPC: 782475724697
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Tapered Roller Insert Bearing, Double-Interlock, Series: 107, 1-3/8 in Bore Dia, 3-5/16 in Outside Dia, 2 Rows, 2.53 in W, Triple Lip Seal Closure, 5500 lb Dynamic/26000 lb Static, Rubber Seal, Cast Iron Cage, 3820 rpm Maximum, 200 to 300 deg F
| Bore Diameter | : | 1-3/8 in |
| Cage Material | : | Cast Iron |
| Closure Type | : | Triple Lip Seal |
| Load Capacity | : | 5500 lb Dynamic/26000 lb Static |
| Maximum Speed | : | 3820 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 3-5/16 in |
| Seal Material | : | Rubber |
| Series | : | 107 |
| Temperature Rating | : | 200 to 300 deg F |
| Type | : | Double-Interlock |
| Width | : | 2.53 in |
- Split housing, XTS seal
- Replaceable inner unit for application versatility
- Static misalignment capability
- Offered in both non-expansion and expansion assemblies
- Factory assembled, adjusted and prelubricated
- Case hardened rollers and races
- Easy installation and maintenance
- 65 deg set screw angle Springlok™ collar/flingers with more holding power than 90 to 120 deg
Instruction/Installation Manual
