Dodge® 023266 DOD023266
  1. pin-int

Dodge® 023266 DOD023266

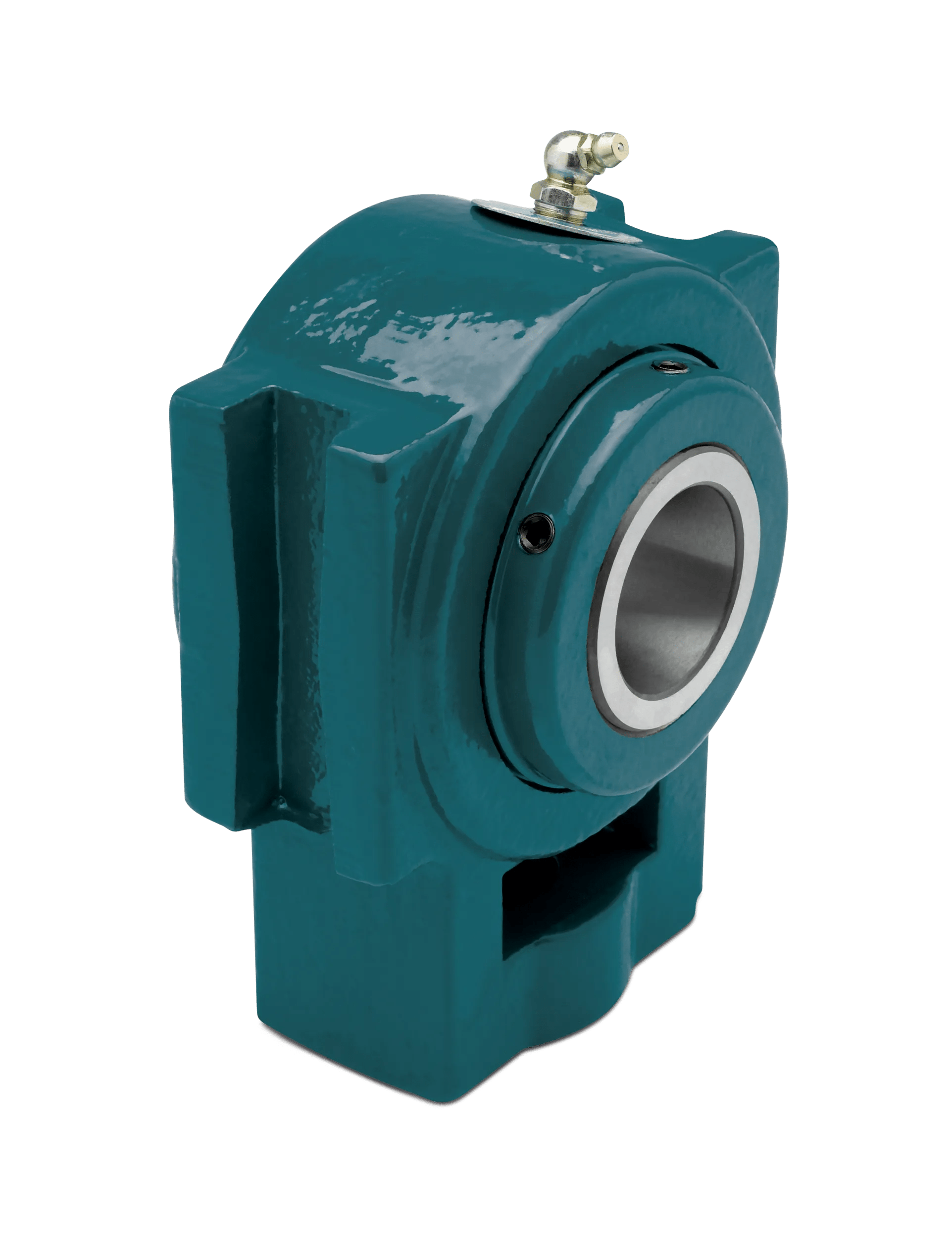

Dodge® 023266 207 Non-Expansion Type K Wide Slot Take-Up Spherical Roller Bearing, 2-1/2 in Dia Bore, 7.891 in L x 3.38 in W x 6 in H, 10600 lb Dynamic/54000 lb Static Load, Alternate Part Number: WSTU-K-208R

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD023266
  • Alt Part Number: WSTU-K-208R
  • MPN: 023266
  • UPC: 782475696352
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Take-Up Spherical Roller Bearing, Non-Expansion Type K Wide Slot, Series: 207, 2-1/2 in Bore, 7.891 in Length, 3.38 in Width, 6 in Height, 10600 lb Dynamic/54000 lb Static Load, For Use With: CP502 Center Pull Take-Up Frames, Steel Bearing, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      2-1/2 in
Finish      :      Uncoated
Height      :      6 in
Length      :      7.891 in
Load Capacity      :      10600 lb Dynamic/54000 lb Static
Series      :      207
Suitable For Use With      :      CP502 Center Pull Take-Up Frames
Type      :      Non-Expansion Type K Wide Slot
Width      :      3.38 in
  • Factory assembled, adjusted and pre-lubricated
  • Case hardened rollers and races
  • Easy installation and maintenance
  • 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
  • Trident™ triple rubber lip contacting seals
  • Reduces length thru bore design in a variety of mounting styles
  • Single collar design saves space and installation time
  • Allows bearing to be closer to the load for reduced shaft design
  • Self-aligning
