Dodge® 023245 DOD023245

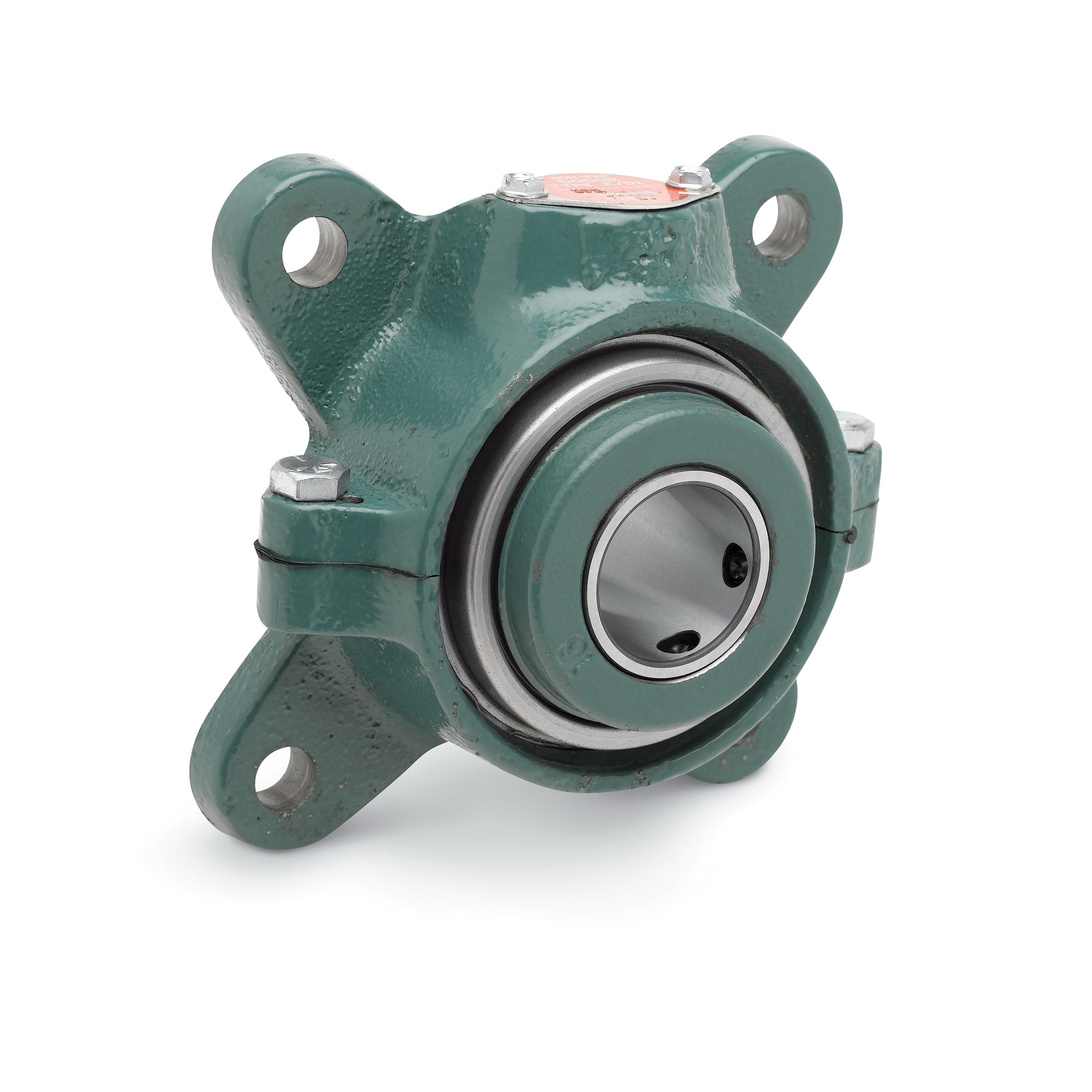

F4B-K-207RE Dodge® 023245 207 Expansion Type K Flange Mount Roller Bearing Unit, 2-7/16 in Dia Bore, 6 in L Bolt Center-to-Center, 8-1/2 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 7.63 in OAL/Dia, Alternate Part Number: F4B-K-207RE
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD023245
- MPN: 023245
- UPC: 782475697199
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Flange Mount Roller Bearing Unit, Expansion Type K, Series: 207, 2-7/16 in Bore, 6 in Bolt Center-to-Center Length, 8-1/2 in Diameter Bolt Circle, 4-Bolt Base Flange Mounting, 7.63 in Overall Length/Diameter, 3.56 in Overall Depth, 7.63 in Overall Height, 65 deg Set Screw Locking Device, Steel Bearing, Rubber Seal, 10600 lb Dynamic/54000 lb Static Load, 2420 rpm Maximum, -100 to 200 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 6 in |
| Bolt Circle Diameter | : | 8-1/2 in |
| Bore Diameter | : | 2-7/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 10600 lb Dynamic/54000 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Maximum Speed | : | 2420 rpm |
| Overall Depth | : | 3.56 in |
| Overall Height | : | 7.63 in |
| Overall Length/Diameter | : | 7.63 in |
| Seal Material | : | Rubber |
| Series | : | 207 |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Expansion Type K |
- Factory assembled, adjusted and pre-lubricated
- Case hardened rollers and races
- Easy installation and maintenance
- 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
- Triple rubber lip contacting seals
- Allows bearing to be closer to the load for reduced shaft design
- Self-aligning
Specification Sheet
