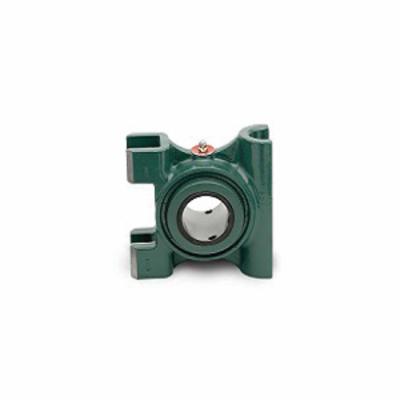

Dodge® 023153 DOD023153

Type E-Xtra, Type K, double-interlock, TAF and EXL mounted bearings are all general purpose high capacity tapered roller bearings capable of handling any combination of radial and thrust load within the capacity of the bearing. All of these bearings are mounted to the shaft by means of set screw collars having 65 deg set screw spacing for optimum clamping force. The Type E-Xtra, double-interlock, TAF and EXL mounted bearings have locking collars at each end of their extended inner races. Type K has a single locking collar. The tapered roller bearings for these mounted bearings all have case carburized inner races (cones), outer races (cups) and rollers. Bearings are preassembled, prelubricated and factory adjusted. They are normally equipped with land riding contact type seals with a metal deflector guard.

Dodge® Top Angle Take-Up Tapered Roller Bearing, Non-Expansion Type E-Xtra Triple Lip, Series: 203, 2-3/16 in Bore, 7 in Length, 3-1/4 in Width, 6.88 in Height, 9850 lb Dynamic/48200 lb Static Load, For Use With: TP20 Top Angle Take-Up Frame, -100 to 200 deg F, Uncoated

• Factory assembled, adjusted and prelubricated
• Case hardened rollers and races
• Easy installation and maintenance
• 65 deg set screw angle Springlok™ collar/flingers with more holding power than 90 to 120 deg
• XTS triple rubber lip contacting seals
• Type E allows easy upgrade from ball bearings
• Comparable mounting dimensions with ball bearings
• Moderate price premium versus ball bearings

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_023000_Manual.pdf
