Dodge® 023134 DOD023134

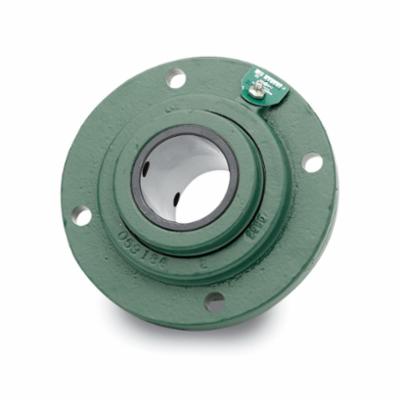

Dodge® 023134 207 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 2-1/2 in Dia Bore, 4.6 in L Bolt Center-to-Center, 6-1/2 in Dia Bolt Circle, Piloted Flange Mount, 7.63 in OAL/Dia, Alternate Part Number: FC-E-208R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD023134
- Alt Part Number: FC-E-208R
- MPN: 023134
- UPC: 782475697533
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Flange Mount Roller Bearing Unit, Non-Expansion Type E-Xtra Triple Lip, Series: 207, 2-1/2 in Bore, 4.6 in Bolt Center-to-Center Length, 6-1/2 in Diameter Bolt Circle, Piloted Flange Mounting, 7.63 in Overall Length/Diameter, 4 in Overall Depth, 7.63 in Overall Height, 65 deg Set Screw Locking Device, Cast Iron Bearing, 10600 lb Dynamic/54000 lb Static Load, 2420 rpm Maximum, -100 to 200 deg F, Uncoated
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 4.6 in |
| Bolt Circle Diameter | : | 6-1/2 in |
| Bore Diameter | : | 2-1/2 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | Piloted |
| Load Capacity | : | 10600 lb Dynamic/54000 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Maximum Speed | : | 2420 rpm |
| Overall Depth | : | 4 in |
| Overall Height | : | 7.63 in |
| Overall Length/Diameter | : | 7.63 in |
| Series | : | 207 |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Non-Expansion Type E-Xtra Triple Lip |
- New XTS seal provides added protection against contamination
- Completely assembled, factory adjusted and properly lubricated shaft
- Stocked in all configurations
