Dodge® 023113 DOD023113

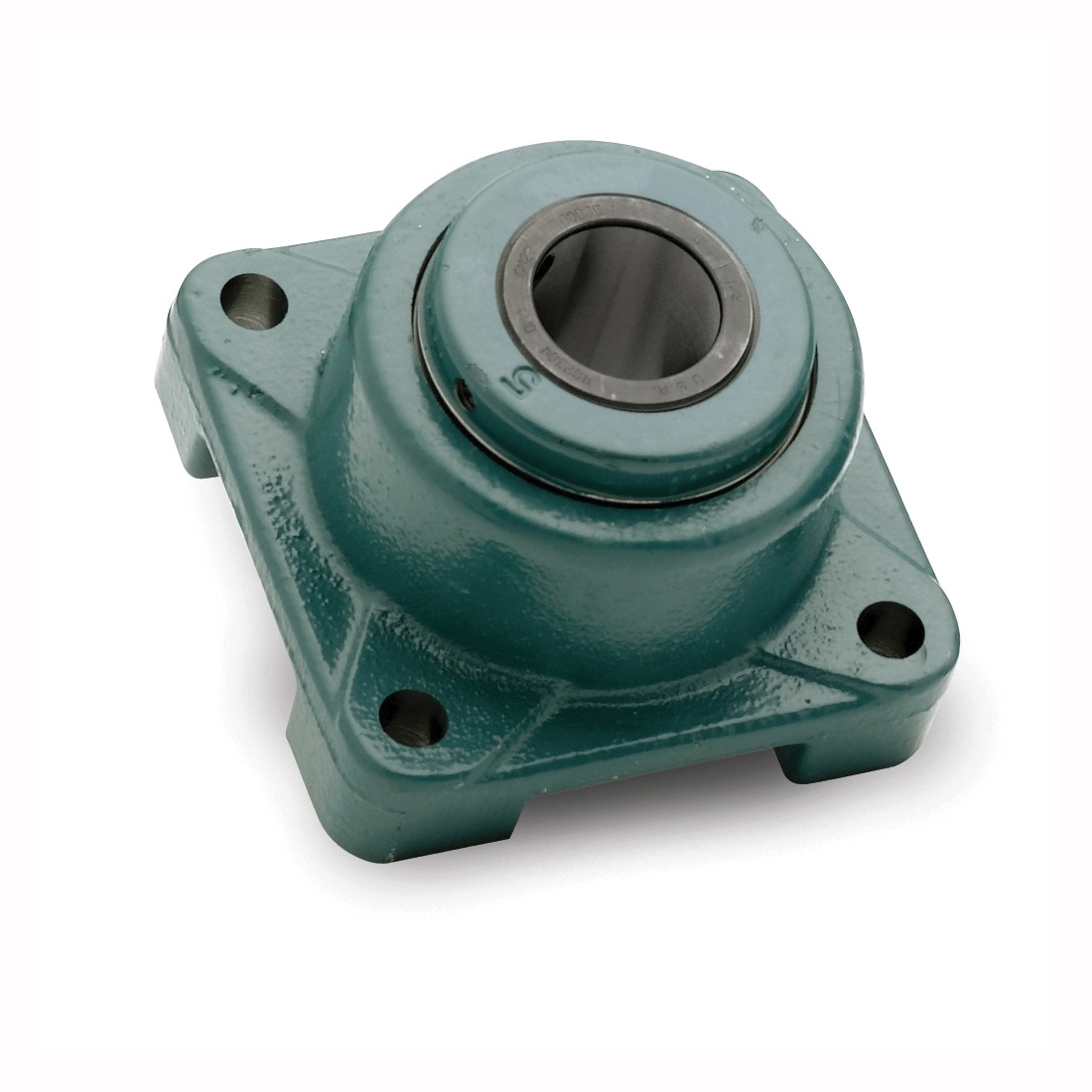

F4B-E-304R Dodge® 023113 307 Series Non-Expansion Type E-Xtra Flange Mount Roller Bearing Unit, 3-1/4 in Dia Bore, 7 in L Bolt Center-to-Center, 9.9 in Dia Bolt Circle, Four-Bolt Base Flange Mount, 9-1/4 in OAL/Dia, Alternate Part Number: F4B-E-304R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD023113
- Alt Part Number: F4B-E-304R
- MPN: 023113
- UPC: 782475699360
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Type E-Xtra bearings are manufactured with high-capacity tapered roller bearing inserts which allow for combination of radial and thrust loads, featuring the highest load ratings in the industry achieved by world class design and manufacturing.
Dodge® Flange Mount Roller Bearing Unit, Non-Expansion Type E-Xtra, Series: 307 Series, 3-1/4 in Bore Dia, 7 in Bolt Center-to-Center Length, 9.9 in Bolt Circle, Four-Bolt Base Flange Mounting Type, 9-1/4 in Overall Length/Diameter, 5-1/4 in Overall Depth, 9-1/4 in Overall Height, 65 deg Setscrew Locking Device, Steel Bearing, Rubber Seal, 17750 lb Dynamic/108600 lb Static, 1640 rpm Maximum, -100 to 200 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 7 in |
| Bolt Circle Diameter | : | 9.9 in |
| Bore Diameter | : | 3-1/4 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Base |
| Load Capacity | : | 17750 lb Dynamic/108600 lb Static |
| Locking Device | : | 65 deg Set Screw |
| Maximum Speed | : | 1640 rpm |
| Overall Depth | : | 5-1/4 in |
| Overall Height | : | 9-1/4 in |
| Overall Length/Diameter | : | 9-1/4 in |
| Seal Material | : | Rubber |
| Series | : | 307 |
| Temperature Rating | : | -100 to 200 deg F |
| Type | : | Non-Expansion Type E-Xtra |
- Factory assembled, adjusted and pre-lubricated
- Case hardened rollers and races
- Easy installation and maintenance
- 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
- New XTS seal provides added protection against contamination
- Stocked in all configurations
