Dodge® 023024 DOD023024

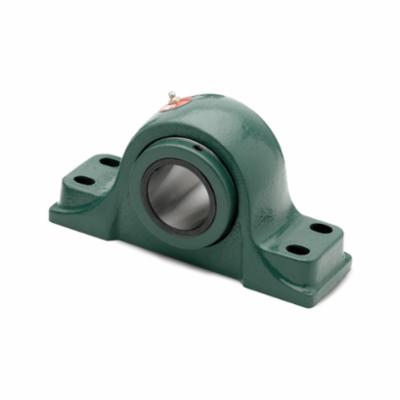

Dodge® 023024 207 Type E-Xtra Pillow Block Roller Bearing Unit, 2-7/16 in Dia Bore, 8.31 to 8.69 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 10-1/2 in OAL x 5.63 in OAH, Alternate Part Number: P4B-E-207R

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD023024
  • Alt Part Number: P4B-E-207R
  • MPN: 023024
  • UPC: 782475697892
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Dodge® Pillow Block Roller Bearing Unit, Type E-Xtra, Series: 207, 2-7/16 in Bore, 8.31 to 8.69 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 10-1/2 in Overall Length, 4 in Overall Width, 5.63 in Overall Height, Four-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, 65 deg Set Screw Locking Device, Trident™ Triple Lip Seal, Non-Expansion (Fixed) Expansion, 10600 lb Dynamic/54000 lb Static Load, 2420 rpm Maximum, Cast Iron, Black Oxide

Base Width      :      3-1/2 in
Base to Bore Centerline      :      2-3/4 in
Bolt Center-to-Center Length      :      8.31 to 8.69 in
Bore Diameter      :      2-7/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Black Oxide
Load Capacity      :      10600 lb Dynamic/54000 lb Static
Locking Device      :      65 deg Set Screw
Material      :      Cast Iron
Maximum Speed      :      2420 rpm
Mounting Type      :      Four-Bolt Base
Overall Height      :      5.63 in
Overall Length      :      10-1/2 in
Overall Width      :      4 in
Seal Type      :      Trident™ Triple Lip
Series      :      207
Type      :      Type E-Xtra
  • Factory assembled, adjusted and prelubricated
  • Case hardened rollers and races
  • Easy installation and maintenance
  • Triple rubber lip contacting seals
