Dodge® 015256 DOD015256
  1. pin-int

Dodge® 015256 DOD015256

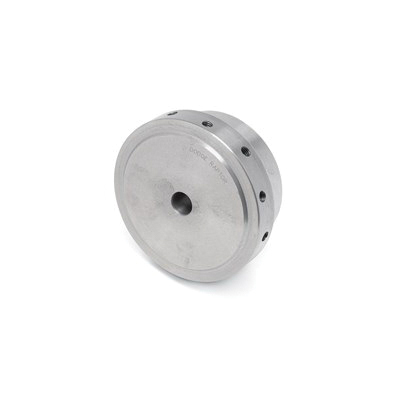

40HRBM Dodge® 015256 Rough Stock Bore Flexible Tire Coupling Hub, E40M Coupling, 85 mm Bore Dia, 64 mm Length Through Bore, Alternate Part Number: 40HRBM

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD015256
  • MPN: 015256
  • UPC: 782477355080
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Dodge® Flexible Tire Coupling Hub, Rough Stock Bore, E40M Coupling, 85 mm Bore Dia, 146 mm Hub Dia, 64 mm Hub Length, 5000 rpm Maximum, 64 mm Length Through Bore, M16 x 2 Screw

Bore Diameter      :      85 mm
Coupling Size      :      E40M
Hub Diameter      :      146 mm
Hub Length      :      64 mm
Length Through Bore      :      64 mm
Maximum Speed      :      5000 rpm
Screw Size      :      M16 x 2
Type      :      Rough Stock Bore
  • Suited for any application, hubs are reversible to accommodate a wide range of shaft gaps
  • Interchangeable hubs are used for both close-coupled and spacer designs for reduced inventory
  • Setscrew locking mechanism ensures a quick, easy installation
  • Two setscrews at a 65 deg angle optimizes radial and torsional holding power, resulting in a 75% holding power increase versus competitive designs using one setscrew
