| Base to Bore Centerline | : | 2.75 in |
| Bolt Center-to-Center Length | : | 7.815 in |
| Bore Diameter | : | 1.9375 in |
- Mfg. Prod.: 013943
- Lookup Name: P2B511-TAFD-115
- UPC Code: 782477898594
- Weight: 20.11
- Product Type: TAF
- Base to Bore Centerline: 2.75 in
- Bearing Component: Mounted Bearing
- Bearing Type: Tapered Roller
- Bolt Diameter: 0.625 in
- Bolt to Bolt (Max): 8.25 in
- Bolt to Bolt (Min): 7.38 in
- Bolt Center-to-Center Length: 7.815
- Bore Length: 3.5 in
- CAD Link: https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/taf/p2b_taf_nex_defender_asmtab.prj&varset={SS=1-15/16},{SERIES=511},{PN=013943},{DESCRIPTION=P2B511-TAFD-115R},{HF=2},{EF=Non Expansion Type},{A=3.50},{B=9.63},{C=2.75},{DMIN=7.38},{DMAX=8.25},{E=N/A},{F=5/8},{G=1.20},{H=1.03},{J=6.14},{K=1.75},{L=3.44},{M=2.75},{P=6.36},{T=0.28},{SC=43000},{DC=8070},{RN=17},{RMD=0.41},{PD=2.709},{EP=0.004/0.012},{CSS=3/8-16x3/4},{CST=290},{HM=A48 CLASS 30},{CM=4118 CASE CARB.},{CUM=4118 CASE CARB.},{RM=STEEL},{ROM=4118 CASE CARB.},{SM=6.00}&hidePortlets=searchHeader

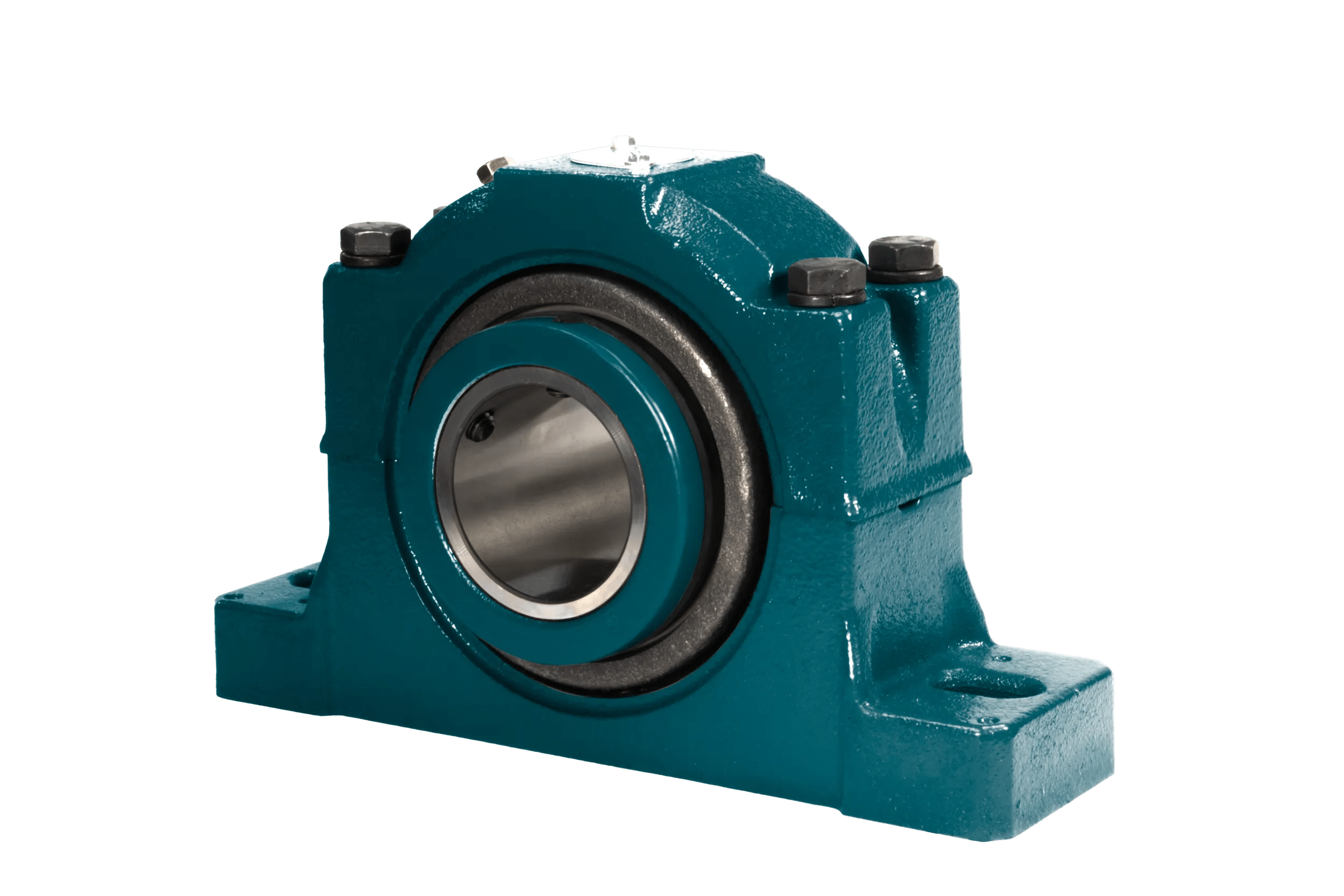

- Description: P2B511-TAFD-115R
- Dynamic Load Capacity: 9300 POUND_FORCE
- Expansion Capability: Non-Expansion (Fixed)
- Greasable: Yes
- Grease Name: MobilGrease XHP222
- Housing Construction: Split
- Housing Dimensional Standard: SAF
- Housing Material: Cast Iron
- Housing Type: Two-Bolt Pillow Block
- Insert Material: Steel
- Insert Outer Diameter: 3.5 in
- Lubrication: Grease
- Maximum Speed: 3050 rpm
- PT Place Flag: Yes
- Seal Type: Quadruple-Lip Contact
- Sensor Ready: Yes
- Shaft Attachment: Setscrew
- Bore Diameter: 1.9375 in
- Static Load Capacity: 43000 POUND_FORCE
- Suitable for High Temperature: No
