| Base to Bore Centerline | : | 4.25 in |
| Bolt Center-to-Center Length | : | 12.5 in |
| Bore Diameter | : | 3.9375 in |
- Mfg. Prod.: 013930

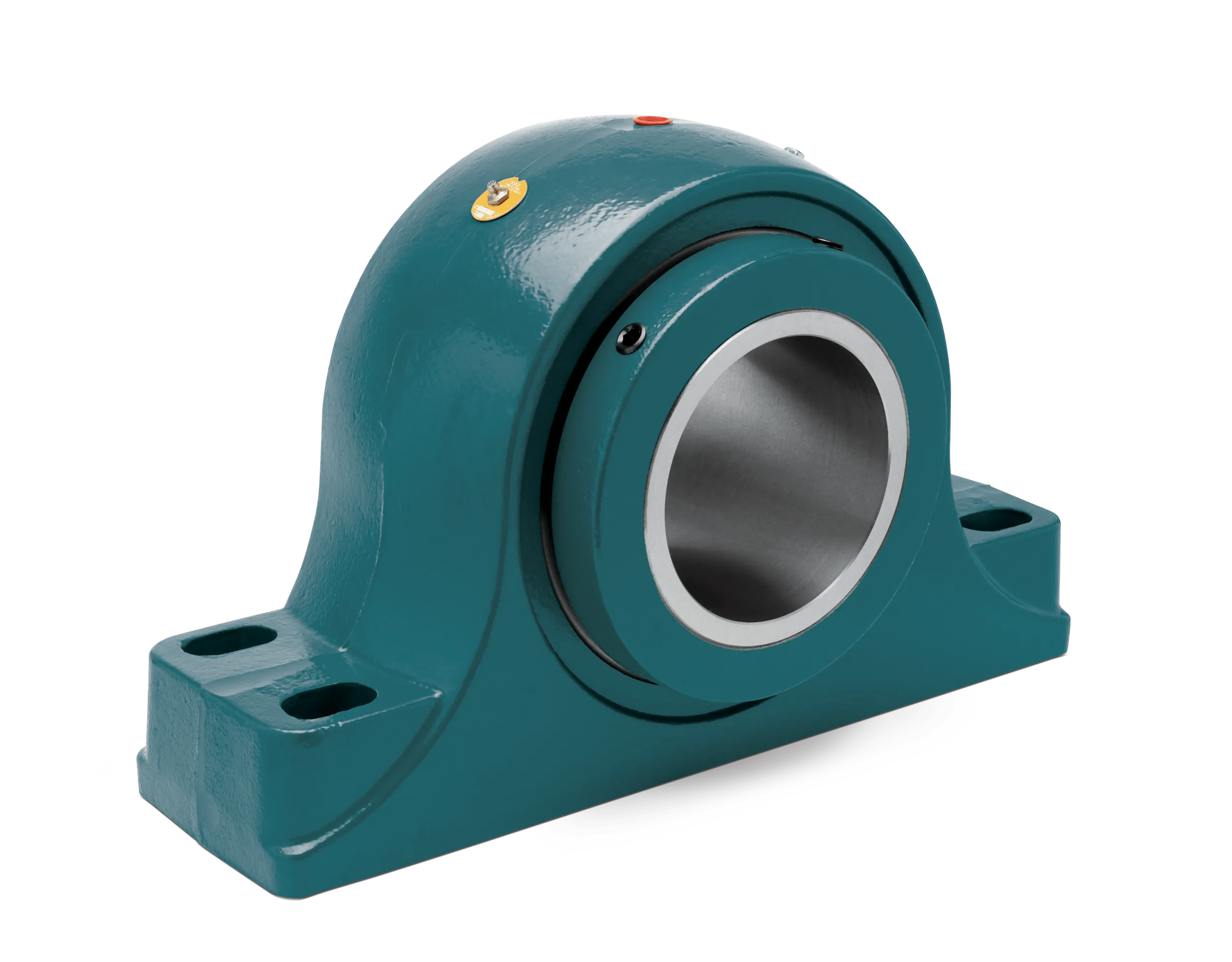

- Lookup Name: P4B-ED-315R
- UPC Code: 782477899362
- Weight: 68.51
- Product Type: Type E
- Base to Bore Centerline: 4.25 in
- Bearing Component: Mounted Bearing
- Bearing Type: Tapered Roller
- Bolt Diameter: 0.75 in
- Bolt to Bolt (Max): 12.75 in
- Bolt to Bolt (Min): 12.25 in
- Bolt Center-to-Center Length: 12.5
- Bolt Width: 2.25 in
- Bore Length: 6.25 in
- CAD Link: https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/p4b_gi_defender_asmtab.prj&varset={SS=3-15/16},{PN=013930},{DESCRIPTION=P4B-ED-315R},{A=6-1/4},{B=15-1/4},{C=4-1/2},{DMIN=12-1/4},{DMAX=12-3/4},{E=2-1/4},{F=3/4},{G=1-1/8},{H=2-7/16},{J=8-1/2},{J1=8-7/16},{L=6},{M=4-1/4}&hidePortlets=searchHeader
- Description: P4B-ED-315R
- Dynamic Load Capacity: 24400 POUND_FORCE
- Expansion Capability: Non-Expansion (Fixed)
- Greasable: Yes
- Grease Name: MobilGrease XHP222
- Housing Construction: Solid
- Housing Dimensional Standard: Type E
- Housing Material: Cast Iron
- Housing Type: Four-Bolt Pillow Block
- Insert Material: Steel
- Insert Outer Diameter: 6.375 in
- Lubrication: Grease
- Maximum Speed: 1530 rpm
- PT Place Flag: Yes
- Seal Type: Quadruple-Lip Contact
- Sensor Ready: Yes
- Shaft Attachment: Setscrew
- Bore Diameter: 3.9375 in
- Static Load Capacity: 154000 POUND_FORCE
- Suitable for High Temperature: No
- Take-Up Frame Size: HD-400
