| Base to Bore Centerline | : | 2.25 in |
| Bolt Center-to-Center Length | : | 7.005 in |
| Bore Diameter | : | 1.9375 in |
- Mfg. Prod.: 013923
- Lookup Name: P2B-ED-115R
- UPC Code: 782477898921
- Weight: 11.78
- Product Type: Type E
- Base to Bore Centerline: 2.25 in
- Bearing Component: Mounted Bearing
- Bearing Type: Tapered Roller
- Bolt Diameter: 0.625 in
- Bolt to Bolt (Max): 7.1300 in
- Bolt to Bolt (Min): 6.88 in
- Bolt Center-to-Center Length: 7.005
- Bore Length: 3.5 in
- CAD Link: https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/p2b_gi_defender_asmtab.prj&varset={SS=1-15/16},{PN=013923},{DESCRIPTION=P2B-ED-115R},{A=3-1/2},{B=8-7/8},{C=2-1/2},{DMIN=6-7/8},{DMAX=7-1/8},{F=5/8},{G=7/8},{H=1-5/16},{J=4-1/2},{J1=4-11/16},{L=3-7/16},{M=2-1/4}&hidePortlets=searchHeader
- Description: P2B-ED-115R
- Dynamic Load Capacity: 9300 POUND_FORCE
- Expansion Capability: Non-Expansion (Fixed)
- Greasable: Yes
- Grease Name: MobilGrease XHP222
- Housing Construction: Solid
- Housing Dimensional Standard: Type E
- Housing Material: Cast Iron

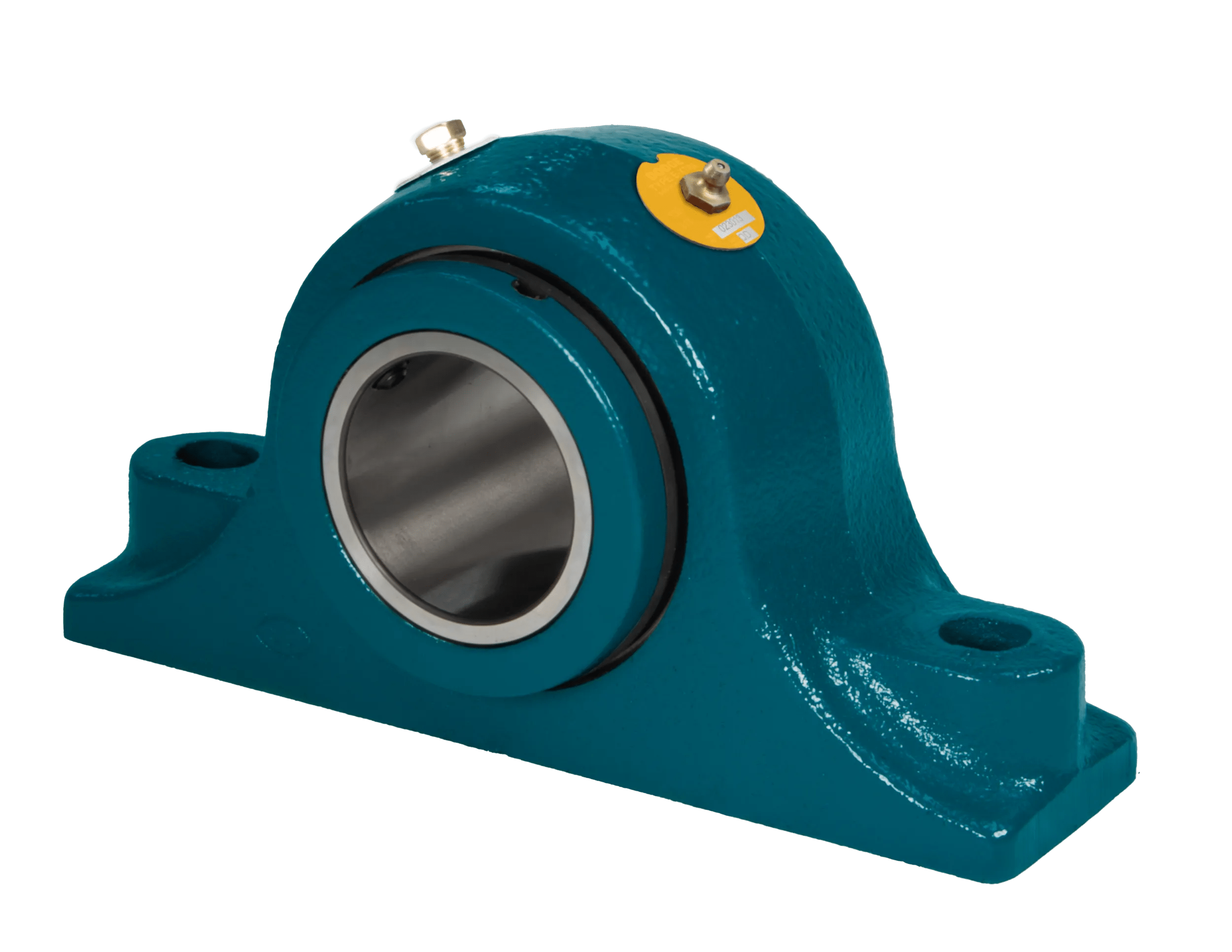

- Housing Type: Two-Bolt Pillow Block
- Insert Material: Steel
- Insert Outer Diameter: 3.5 in
- Lubrication: Grease
- Maximum Speed: 3050 rpm
- PT Place Flag: Yes
- Seal Type: Quadruple-Lip Contact
- Sensor Ready: Yes
- Shaft Attachment: Setscrew
- Bore Diameter: 1.9375 in
- Static Load Capacity: 43000 POUND_FORCE
- Suitable for High Temperature: No
- Take-Up Frame Size: HD-200,TS-300
