Dodge® 013136 DOD013136
  1. pin-int

Dodge® 013136 DOD013136

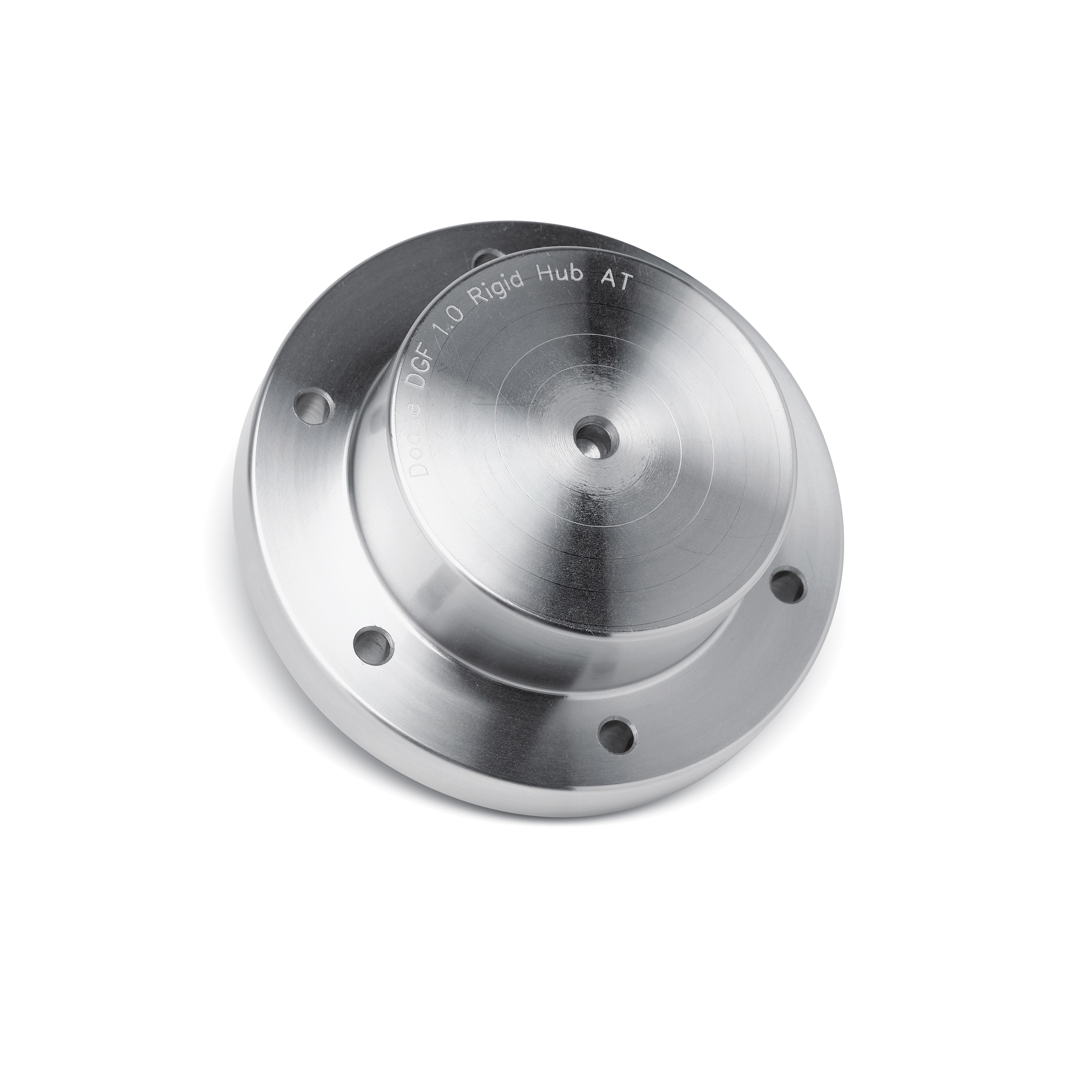

Dodge® 013136 DGF Series Type EB Gear Coupling Rigid Hub, Code 4 Coupling, 1.813 to 6.5/1.813 to 6.875 in Dia Bore, 4-3/4 in L Through Bore, 7-1/2 in Dia Hub, Steel

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD013136
  • MPN: 013136
  • UPC: 782475318421
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Dodge® Gear Coupling Rigid Hub, Type EB, Series: DGF Series, Code 4 Coupling, 1.813 to 6.5/1.813 to 6.875 in Bore Dia, 7-1/2 in Hub Dia, 3000 rpm Maximum, 4-3/4 in Length Through Bore, Steel

Bore Diameter      :      1.813 to 6.5/1.813 to 6.875 in
Coupling Size      :      Code 4
Hub Diameter      :      7-1/2 in
Length Through Bore      :      4-3/4 in
Material      :      Steel
Maximum Speed      :      3000 rpm
Series      :      DGF
Type      :      Type EB
  • Larger tooth profile provides additional service factor
  • Good inherent balance
  • Proven O-ring seal design
  • Machined flanges and gasket for improved sealing
  • High-grade fasteners
  • High torque rating allows for coupling downsizing
  • Versatile design permits interchangeable half couplings
  • Low backlash
  • Crowned tooth profile for longer life and improved performance
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_013110_Line_Drawing.pdf
