Dodge® 010601 DOD010601

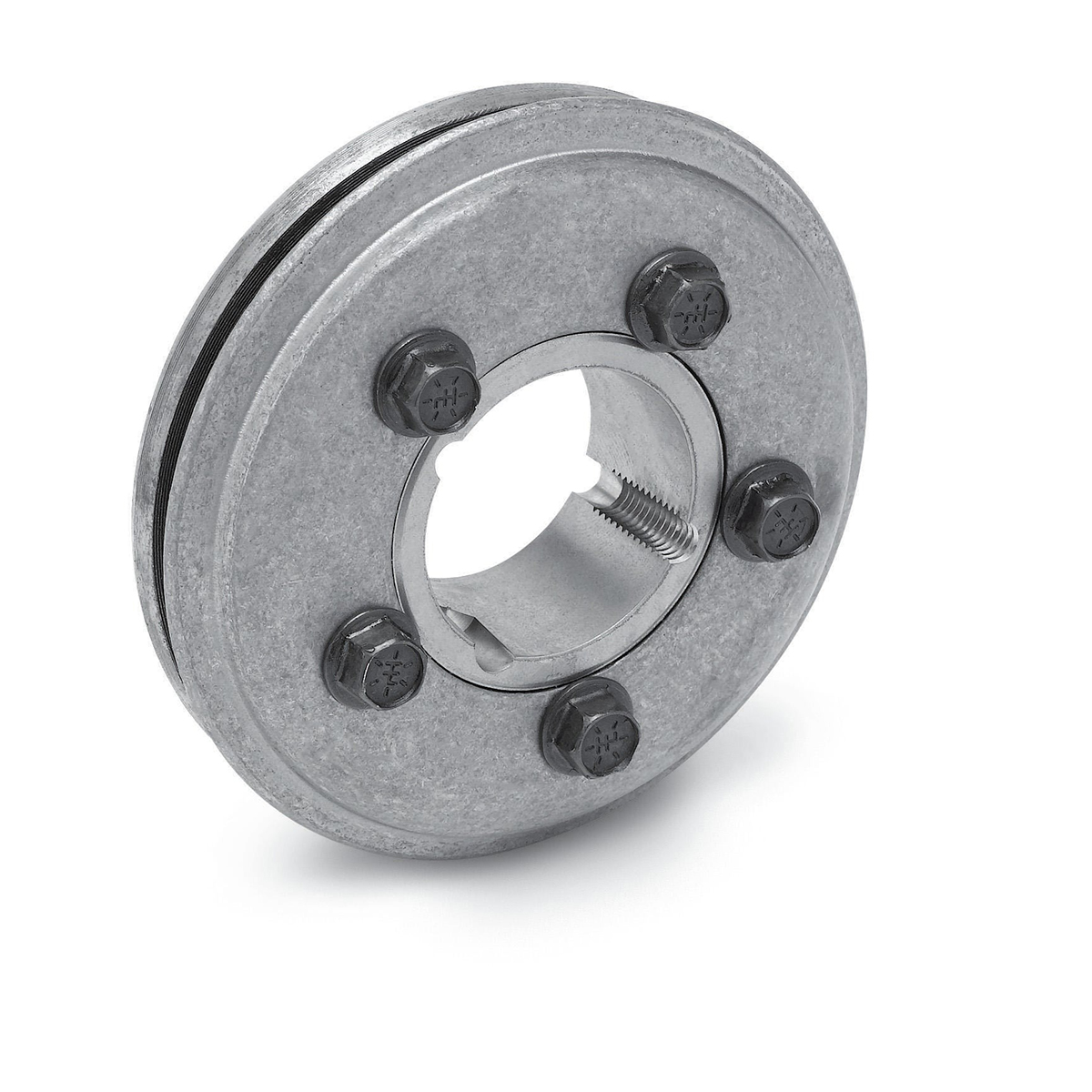

Dodge® Para-Flex® 010601 Type H Taper-Lock® Bushing Flange Assembly, 1-1/8 in Dia Bore, 5-1/4 in OD, 0.88 in Length Through Bore, Ductile Iron
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD010601
- MPN: 010601
- UPC: 782475008964
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The coupling assemblies have optional methods of attachment to the shaft including but not limited to: clearance fit, interference fit and Grip Tight® Bushings or Taper-Lock® Bushings. Clearance fits and interference fits are supplied with an industry standard keyway and two set screws, one over the key and one at 65 deg. Spacer Couplings consist of two hubs and a pre-assembled center assembly. The center assembly is readily removable to facilitate maintenance on pumps or other connected equipment and must be replaceable without disturbing the coupled equipment and without realignment.
Dodge® Para-Flex® Flange Assembly, Type H Taper-Lock® Bushing, 1-1/8 in Bore Dia, 5-1/4 in Outside Dia, 0.88 in Length Through Bore, Ductile Iron
| Bore Diameter | : | 1-1/8 in |
| Length Through Bore | : | 0.88 in |
| Material | : | Ductile Iron |
| Outside Diameter | : | 5-1/4 in |
| Type | : | Type H Taper-Lock® Bushing |
- PX50TL coupling size
