Dodge® 009005 DOD009005

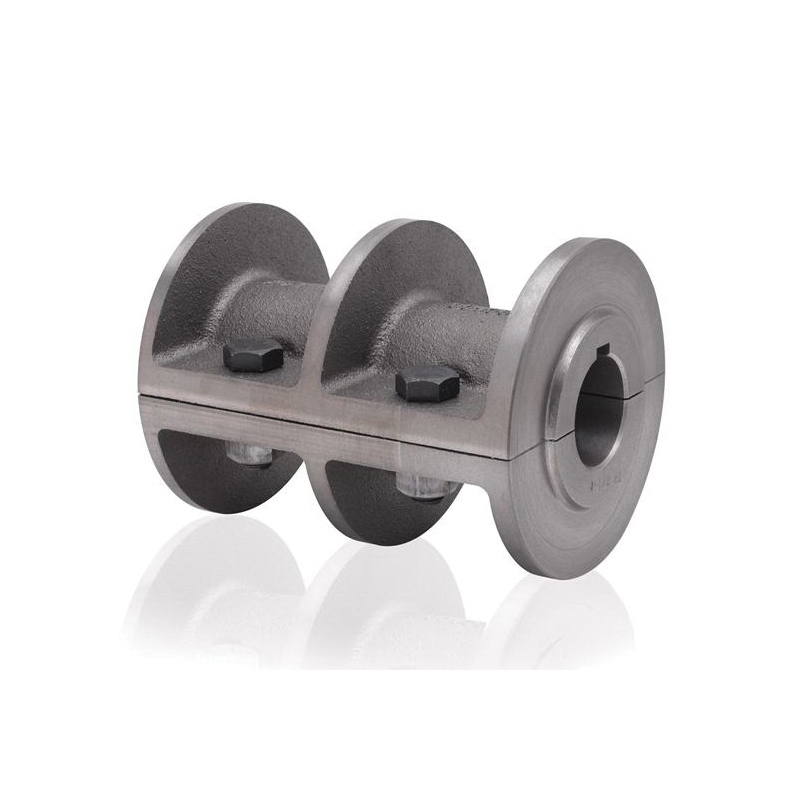

Dodge® 009005 Finished Bore Ribbed Rigid Coupling, 1-7/16 in Dia Bore, 4-5/8 in OD, 6-3/16 in OAL, 3500 in-lb Torque, 4130 rpm Max

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD009005
  • MPN: 009005
  • UPC: 782475006984
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Originally known as the "Grim Death" compression coupling, the Dodge® ribbed rigid coupling is proudly made utilizing over 110 years of Dodge® coupling knowledge. With rated load capacities of ANSI 1018 steel, the Dodge® ribbed rigid coupling can be clamp fit onto shafts of equal diameter with a full length key.

Dodge® Ribbed Rigid Coupling, Finished Bore, 1-7/16 in Bore, 4-5/8 in OD, 6-3/16 in Overall Length, 3500 in-lb Torque, 4130 rpm Maximum

Bore Diameter      :      1-7/16 in
Maximum Speed      :      4130 rpm
Outside Diameter      :      4-5/8 in
Overall Length      :      6-3/16 in
Torque Rating      :      3500 in-lb
Type      :      Finished Bore
  • Simple, easy installation
  • No lubrication or maintenance required
  • Zero backlash for timing or positioning applications
  • Rated load capacities of 1018 shafting
  • Connects same diameter shafts via compression fit clamping
  • Metallic coupling
  • Clearance fit with full length key
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_009005_Specification_Sheet.pdf
