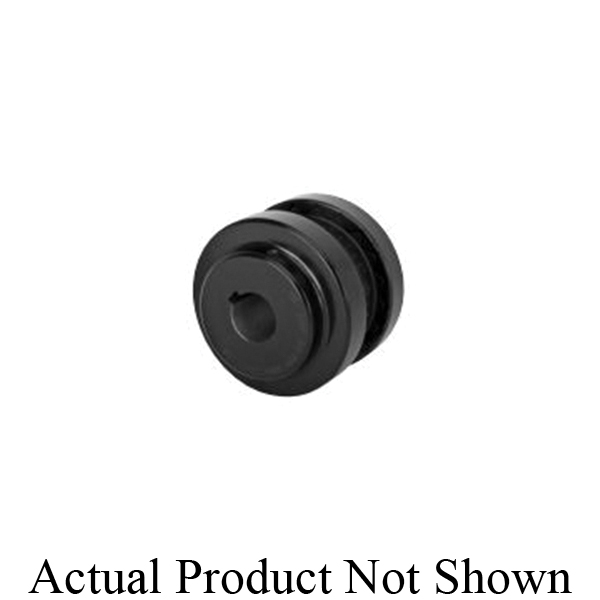

Dodge® 004919 DOD004919

Dodge® 004919 Finished Bore Type S Coupling Flange, 9S Coupling, 28 mm Bore Dia, 61 mm Length Through Bore, Cast Iron

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD004919
  • MPN: 004919
  • UPC: 782475276448
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Coupling Flange, Finished Bore Type S, 9S Coupling, 28 mm Bore Dia, 92 mm Hub Dia, 8 x 3.3 mm Keyway, 3750 rpm Maximum, 61 mm Length Through Bore, Cast Iron, Powder Coated

Bore Diameter      :      28 mm
Coupling Size      :      9S
Finish      :      Powder Coated
Hub Diameter      :      92 mm
Keyway Size      :      8 x 3.3 mm
Length Through Bore      :      61 mm
Material      :      Cast Iron
Maximum Speed      :      3750 rpm
Type      :      Finished Bore Type S
  • Clearance bore fit
  • High-strength, cast-iron flanges bored-to-size for clearance fit and balanced to AGMA 9 Standards
  • AGMA 9 dynamically balanced type S flanges for reduced vibration
  • Use with D-Flex® flexible sleeve coupling
