Dichtomatik 12X22X7TC-BX DIC12X22X7TC-BX
  1. pin-int

Dichtomatik 12X22X7TC-BX DIC12X22X7TC-BX

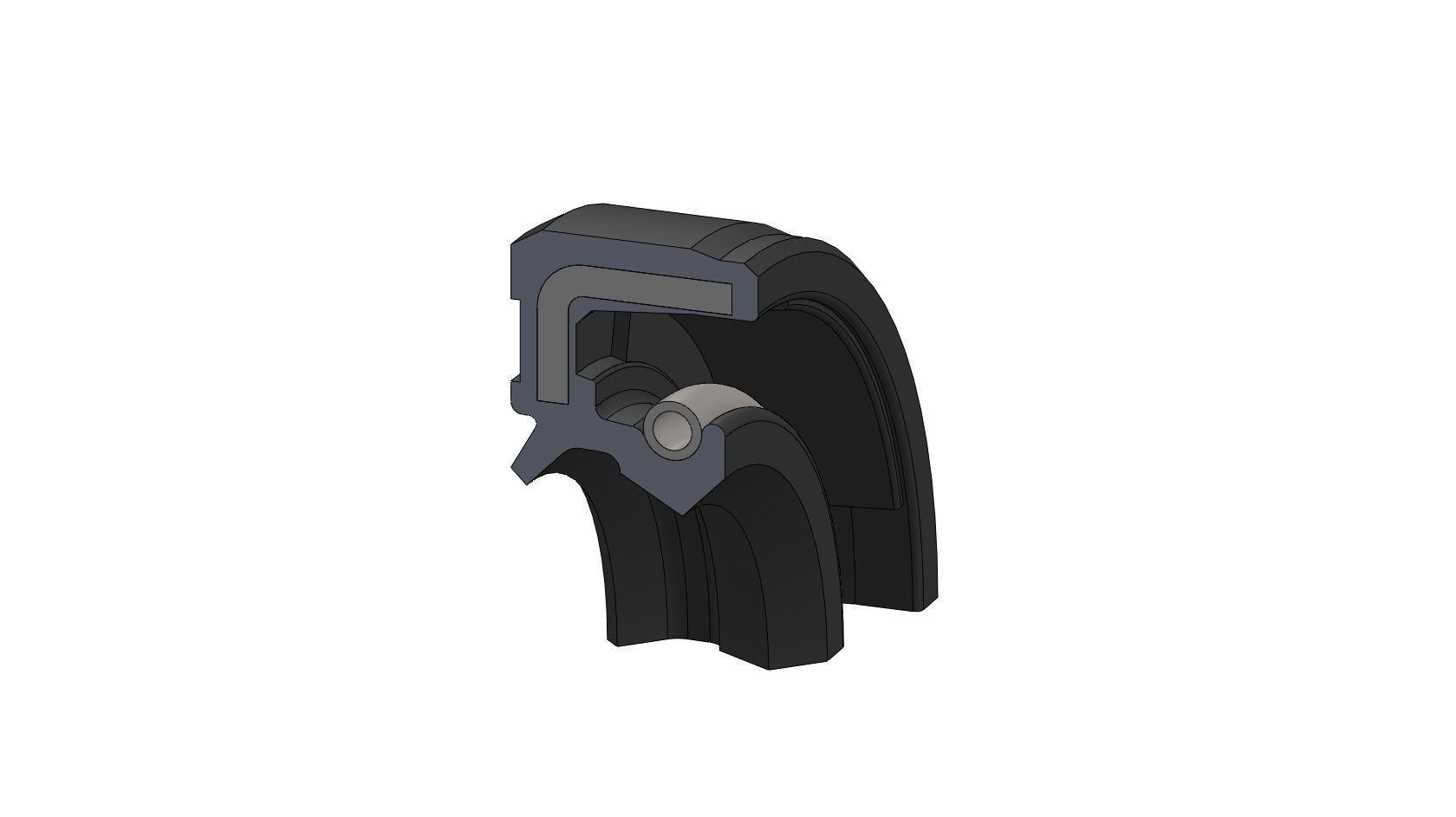

DICHTOMATIK 12X22X7TC-BX Oil Seal - ID 12 mm, OD 22 mm, W 7 mm; Nitrile

  • Manufacturer: Dichtomatik
  • Brand Name: Dichtomatik
  • Part Number: DIC12X22X7TC-BX
  • Alt Part Number: 12X22X7TC-BX
  • MPN: 12X22X7TC-BX
  • UPC: 750886022800
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Oil seal designed for rotary shaft sealing to help retain lubricant and exclude contaminants in mechanical equipment. Specs: Type: Oil Seal; Inside Diameter: 12 mm; Outside Diameter: 22 mm; Width: 7 mm; Lip Material: Nitrile

Color      :      Black
Domestic/Import      :      Import
Durometer      :      70 Shore A
Inside Diameter      :      12 mm
Lip Material      :      Nitrile
Outside Diameter      :      22 mm
Series      :      WAS
Temperature Rating      :      -40 to 80 deg C
Type      :      Oil Seal
Width      :      7 mm
  • Type: Oil Seal
  • Inside Diameter: 12 mm
  • Outside Diameter: 22 mm
  • Width: 7 mm
  • Lip Material: Nitrile
