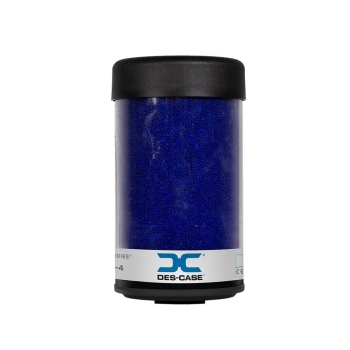

Des‑Case DC-EX-4 DESDC-EX-4
Highest‑capacity Extended Series breather for large tanks and high breathing cycles.
- Manufacturer: Des‑Case Corporation
- Brand Name: Des‑Case
- Part Number: DESDC-EX-4
- MPN: DC-EX-4
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EACH
-
Price:
DC‑EX‑4 offers the largest desiccant mass and adsorption capacity in the Extended family, suited to big reservoirs and remote installations.
| Air Flow Rate | : | 24 cfm @ 1 psid |
| Diameter | : | 5.66 in |
| Filter | : | 3 µm absolute µm |
| Height | : | 10.0 in |
| Material | : | Polycarbonate, honeycomb oil‑mist reducer, silica gel, polyester media |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Extended |
| Thread Size | : | 1 in FNPT |
| Type | : | Desiccant Breather |
- 1″ FNPT connection
- ≈24 cfm @ 1 psid airflow
- ≈4.2 lbs silica gel (~27 fl oz adsorption)
- 3 µm absolute filtration
- Check‑valves; oil‑mist reducer
