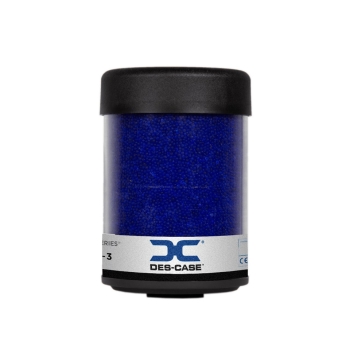

DC‑EX‑3 scales Extended‑Series performance with more silica gel and high airflow for large equipment.
| Air Flow Rate | : | 24 cfm @ 1 psid |
| Diameter | : | 5.66 in |
| Filter | : | 3 µm absolute µm |
| Height | : | 8.0 in |
| Material | : | Polycarbonate, honeycomb oil‑mist reducer, silica gel, polyester media |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Extended |
| Thread Size | : | 1 in FNPT |
| Type | : | Desiccant Breather |
- 1″ FNPT connection
- High adsorption capacity desiccant bed
- 3 µm absolute filtration
- Check‑valves; oil‑mist reducer
- Clear housing
