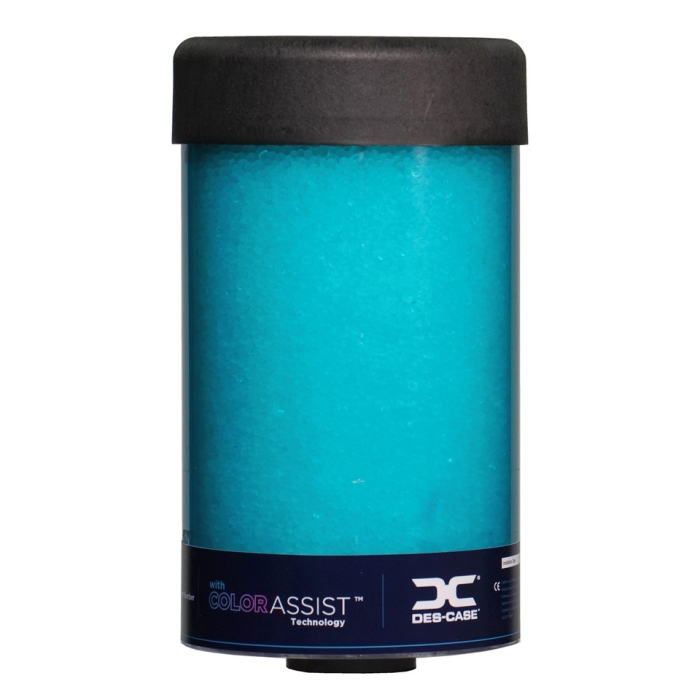

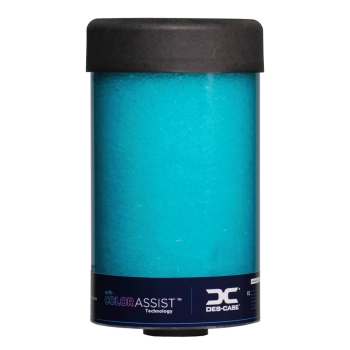

Des‑Case DC-CHC-EX-4 DESDC-CHC-EX-4
Extended Series breather with protective hood/cover for harsh environments.
- Manufacturer: Des‑Case Corporation
- Brand Name: Des‑Case
- Part Number: DESDC-CHC-EX-4
- MPN: DC-CHC-EX-4
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EACH
-
Price:
DC‑CHC‑EX‑4 pairs Extended‑Series capacity with a protective cover/hood configuration for wash‑down or outdoor environments. Use where EX‑4 capability is needed with added protection.
| Air Flow Rate | : | ≈24 cfm @ 1 psid |
| Filter | : | 3 µm absolute µm |
| Material | : | Polycarbonate + protective cover; silica gel; check‑valves; oil‑mist reducer |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Extended |
| Thread Size | : | 1 in FNPT |
| Type | : | Desiccant Breather |
- High‑capacity desiccant bed (Extended platform)
- 3 µm absolute filtration
- Check‑valve isolation and oil‑mist reduction
- Protective cover/hood variant for harsh environments
- 1″ FNPT connection (typical for EX‑4)
