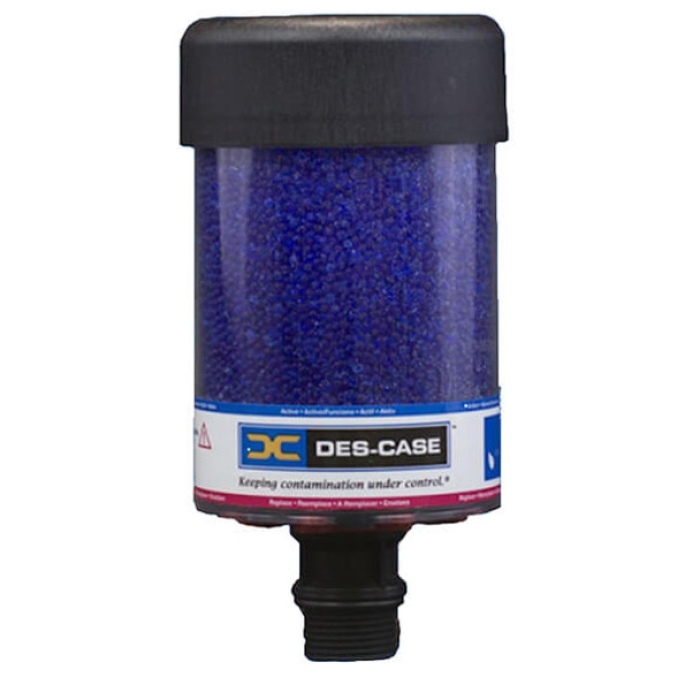

DC‑3SBR provides Standard Series protection with a ¾″ Multi‑Fit connection and ~8.125 in height, suited for moderate reservoir volumes where 1″ ports are not available.
| Air Flow Rate | : | 16 cfm @ 1 psid |
| Diameter | : | 4.00 in |
| Filter | : | 3 µm absolute µm |
| Height | : | 8.125 in |
| Material | : | Polycarbonate, nylon stand‑pipe, silica gel, polyester media |
| Operating Temperature | : | −20 to 200 deg F |
| Series | : | Standard |
| Thread Size | : | 3/4 in Multi‑Fit (NPT/BSPT/NPSM) |
| Type | : | Desiccant Breather |
- ¾″ Multi‑Fit connection (NPT/BSPT/NPSM)
- 3 µm absolute filtration
- Clear housing; color‑change silica gel
- Integrated drip ring and foam pad
- Operating range −20 °F to 200 °F
