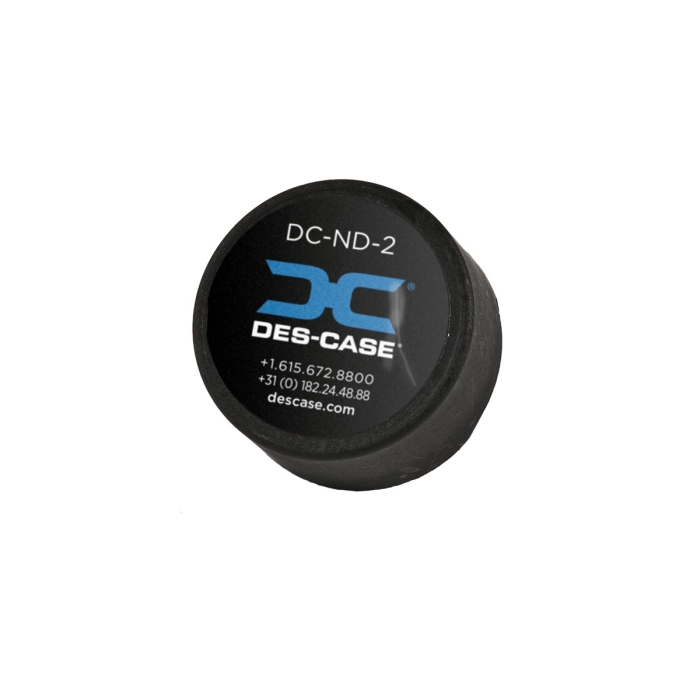

DC‑ND‑2 provides 0.3 µm absolute particulate filtration with hydrophobic media, without desiccant, making it suitable for arid environments or water‑based systems.
| Air Flow Rate | : | 0.67 cfm @ 1 psid |
| Diameter | : | 1.8 in |
| Filter | : | 0.3 µm absolute (β0.3 ≥ 1000) µm |
| Height | : | 1.4 in |
| Material | : | Nylon 6/6 (glass‑filled), hydrophobic ePTFE media |
| Operating Temperature | : | −40 to 300 deg F |
| Series | : | Non‑Desiccant |
| Thread Size | : | 3/8 in |
| Type | : | Non‑Desiccant Breather |
- 3/8″ connection for small ports
- 0.3 µm absolute filtration (hydrophobic media)
- Compact footprint
- High temperature capability up to ~300 °F
